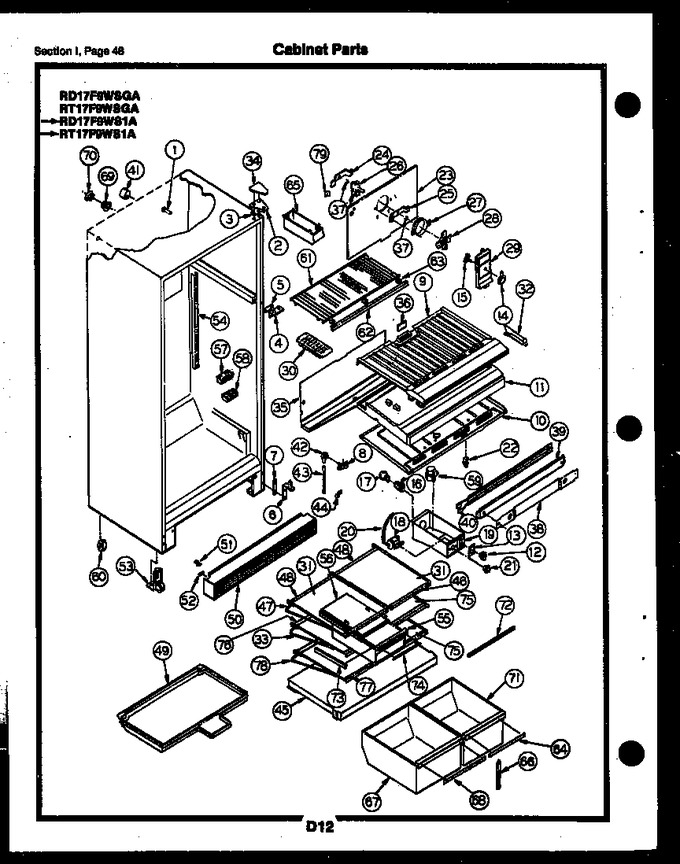

23 - Cabinet Parts


24 - Cabinet Parts


25 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
61	G163002-07		Shelf - Freezer		Appelez-nous	-
62	G141727-29		Trim - Freezer Shelf		Appelez-nous	-
63	G138399		Clip - Trim (3)		Appelez-nous	-
64	G177343-08		Trim - Crisper Pan		Appelez-nous	-
65	G163022-03		Container, Ice		Appelez-nous	-
66	G166310-01		Support, Crisper Cover		Appelez-nous	-
67	G179706-29		Pan - Crisper		Appelez-nous	-
68	G177343-09		Trim - Crisper Pan		Appelez-nous	-
69	G174733		Ferrule, Inner		Appelez-nous	-
70	G174734		Ferrule Outer		Appelez-nous	-
71	G179706-30		Pan - Crisper		Appelez-nous	-
72	G180108-02		Gasket - Crisper		Appelez-nous	-
73	G187215-01		Hanger, Meat Pan Lh		Appelez-nous	-
74	G177343-10		Trim - Meat Pan		Appelez-nous	-
75	G171654-45		Shelf - Cantilever Glass		Appelez-nous	-
76	G172409-03		Trim - Rear		Appelez-nous	-
77	G172410-02		Trim - Snap-on		Appelez-nous	-
78	G186156-01		Frame - Cantilever Shelf		Appelez-nous	-
79	G164571		Bracket, Connector		Appelez-nous	-
*21873	G186982		Service Data Sheet		Appelez-nous	-
*21876	G162659		Button, Plug Ice Maker And Freezer Shelf Mtg. Holes (4)		Appelez-nous	-
*21878	G162827-12		Button, Decorative Plug		Appelez-nous	-
*21879	G142625		Button - Plug Water Inlet Hole		Appelez-nous	-
*21881	G161046		Button - Plug - Ice Maker Harness Hole		Appelez-nous	-
*21882	G174831		Harness Wiring		Appelez-nous	-
*21886	G162892-01		Button, Plug (liner Holes) (2)		Appelez-nous	-
*21887	G175254		Book - Instruction		Appelez-nous	-
*21889	G183100-37		Label - Energy Guide		Appelez-nous	-
61A	G163105		Support-shelf (4)		Appelez-nous	-
61B	G163104		Screw - Support To Liner (4)		Appelez-nous	-
73A	G187216-01		Hanger, Meat Pan Rh		Appelez-nous	-
79A	G162585		Screw		Appelez-nous	-
