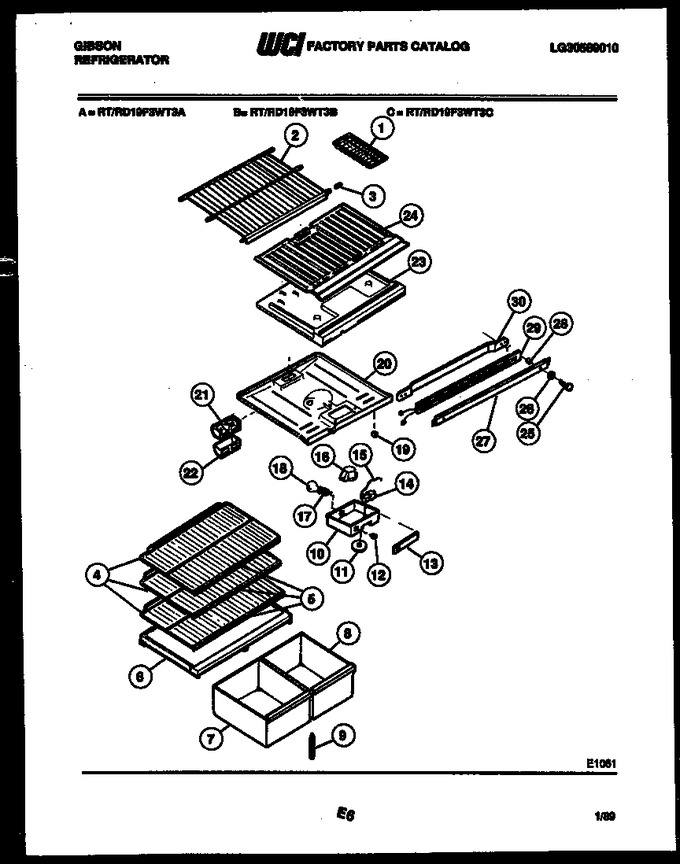

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G156376-13 | Ice Tray (2) |
|
- | |||||
| 2 | G184572-04 | Shelf - Freezer |
|
- | |||||
| 3 | G166495-01 | End Cap-shelf |
|
- | |||||
| 4 | G181153-06 | Shelf-refr (3) |
|
- | |||||
| 5 | G174818 | Wiring Harness-control |
|
- | |||||
| 5 | G172410-06 | Trim-shelf (3) |
|
- | |||||
| 6 | G166062-01 | Wiring, Harness, Compressor |
|
- | |||||
| 6 | G490064-01 | Cover-pan |
|
- | |||||
| 7 | G490015-39 | Pan-small Ls |
|
- | |||||
| 7 | G162549-01 | Service Cord |
|
- | |||||
| 8 | G183584 | Cover, Wiring |
|
- | |||||
| 8 | G176639-23 | Pan-large Rs |
|
- | |||||
| 9 | G187009 | Screw-8-15 X 1/2 |
|
- | |||||
| 9 | G166310-02 | Support-pan Cover |
|
- | |||||
| 10 | G27669 | Clamp-cable (3) |
|
- | |||||
| 10 | G176722-03 | Control Box |
|
- | |||||
| 11 | G168978 | Clamp-harness (2) |
|
- | |||||
| 11 | G490107-02 | Knob-temp Control |
|
- | |||||
| 12 | G178402-02 | Switch-energy Saver |
|
- | |||||
| 12 | G88088 | Clamp-exchanger |
|
- | |||||
| 13 | G177531 | Heat Exchanger |
|
- | |||||
| 13 | G188379-01 | Label-control Box |
|
- | |||||
| 14 | G178425-01 | Heater, Defrost |
|
- | |||||
| 14 | 3200810 | Control-temperature |
|
- | |||||
| 15 | G164572 | Evaporator Coil |
|
- | |||||
| 15 | G142176-11 | Sleeve-plastic Tube |
|
- | |||||
| 16 | G165546 | Strap-evap/heater (2) |
|
- | |||||
| 16 | G187484 | Timer-defrost |
|
- | |||||
| 17 | G166511-01 | Insulator-evap |
|
- | |||||
| 17 | G168302 | Light Socket |
|
- | |||||
| 18 | G185299 | Insulation Block Rs |
|
- | |||||
| 18 | G25806 | Light Bulb |
|
- | |||||
| 19 | G185276 | Insulation Plug Rs |
|
- | |||||
| 19 | G162672 | Light Switch |
|
- | |||||
| 20 | 3016367 | Top-refrigerator |
|
- | |||||
| 20 | G188375 | Insulation Block Ls |
|
- | |||||
| 21 | G162675 | Air Deflector |
|
- | |||||
| 21 | G162690-01 | Thermostat, Defrost |
|
- | |||||
| 22 | G184599 | Plate-compr Mtg |
|
- | |||||
| 22 | G162178 | Cover, Deflector |
|
- | |||||
| 23 | G176777 | Divider, Styrofoam |
|
- | |||||
| 23 | G177617 | Grommet (4) |
|
- | |||||
| 24 | G164634 | Washer (4) |
|
- | |||||
| 24 | G185912 | Bottom, Freezer |
|
- | |||||
| 25 | G183103 | Screw-mullion (4) |
|
- | |||||
| 25 | G163204 | Clip (4) |
|
- | |||||
| 26 | G166847 | Washer-no. 10 Steel (2) |
|
- | |||||
| 26 | G184715 | Drain Pan |
|
- | |||||
| 27 | G164958 | Lock Nut-pan Mtg |
|
- | |||||
| 27 | 3200367 | Mullion-avocado |
|
- | |||||
| 27 | 3200368 | Mullion-wheat |
|
- | |||||
| 27 | 3200369 | Mullion-coffee |
|
- | |||||
| 27 | 3200370 | Mullion-almond |
|
- | |||||
| 27 | 3200366 | Mullion-white |
|
- | |||||
| 28 | 3916001 | Pan Retainer Kit-service |
|
- | |||||
| 28 | 3200464 | Spacer-mullion (2) |
|
- | |||||
| 29 | 3018916 | Heater-mullion |
|
- | |||||
| 29 | 3916021 | Compressor W/electricals-service |
|
- | |||||
| 30 | G490087 | Strap, Mullion Mtg |
|
- | |||||
| 30 | G182225-11 | Relay |
|
- | |||||
| 31 | G185797 | Overload |
|
- | |||||
| 31 | G187874 | Overload |
|
- | |||||
| 32 | G188957 | Clip-overload |
|
- | |||||
| 33 | G166056 | Cover, Terminal |
|
- | |||||
| 34 | G166057 | Strap-term Cover |
|
- | |||||
| *15937 | G189383 | Hot Tube Repair Kit-service |
|
- | |||||
| 10A | G187363 | Screw |
|
- | |||||
| 14A | G107080 | Screw |
|
- | |||||
| 16A | G105289 | Screw |
|
- | |||||
| 20A | G162673 | Screw-top Mtg (3) (non-illustrated) |
|
- | |||||
| 23A | G174818 | Wiring Harness-divider (non-illustrated) |
|
- | |||||
| 26A | G184715 | Drain Pan-service Compr |
|
- | |||||
| 26B | G169873 | Sound Tape-pan (non-illustrated) |
|
- |
