02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

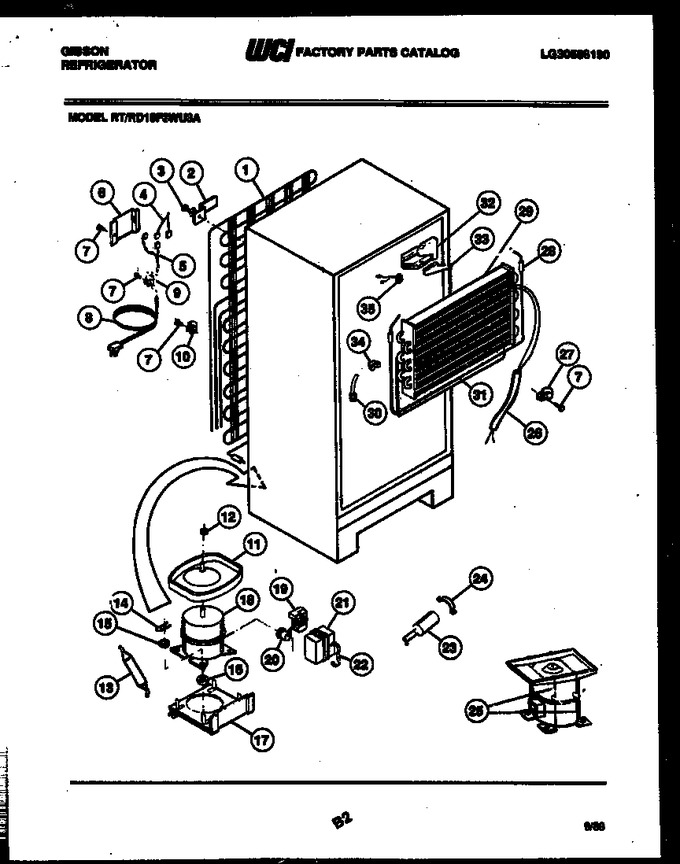

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G162739		Condenser		Appelez-nous	-
2	G164637		Bracket, Cond. Mtg. (4)		Appelez-nous	-
3	G160578		Screw		Appelez-nous	-
4	G174818		Wiring Harness-control		Appelez-nous	-
5	G166062-01		Wiring, Harness, Compressor		Appelez-nous	-
6	G183584		Cover, Wiring		Appelez-nous	-
7	G187009		Screw-8-15 X 1/2		Appelez-nous	-
8	G162549-01		Service Cord		Appelez-nous	-
9	G27669		Clamp-cable (3)		Appelez-nous	-
10	G73986		Clamp-harness		Appelez-nous	-
11	G184715		Pan, Defrost		Appelez-nous	-
12	G164956		Lock Nut-pan Mtg		Appelez-nous	-
13	G186717		Drier-filter		Appelez-nous	-
14	G163204		Clip (4)		Appelez-nous	-
15	G164634		Washer (4)		Appelez-nous	-
16	G177617		Grommet (4)		Appelez-nous	-
17	G184599		Plate-compr Mtg		Appelez-nous	-
18	3916004		Compressor W/ Electricals		Appelez-nous	-
19	G182225-18		Relay		Appelez-nous	-
20	G188877		Overload		Appelez-nous	-
21	G166056		Cover, Terminal		Appelez-nous	-
22	G166057		Strap-term Cover		Appelez-nous	-
23	G188885-02		Capacitor-compr Run		Appelez-nous	-
24	G188897		Strap, Cap Mtg		Appelez-nous	-
25	3916001		Pan Retainer Kit		Appelez-nous	-
26	G177531		Heat Exchanger		Appelez-nous	-
27	G88088		Clamp-exchanger		Appelez-nous	-
28	G178425-01		Heater, Defrost		Appelez-nous	-
29	G164572		Evaporator Coil		Appelez-nous	-
30	G165546		Strap-coil/heater (2)		Appelez-nous	-
31	G166511-01		Insulator-evap		Appelez-nous	-
32	G185299		Insulation Block Rs		Appelez-nous	-
33	G185276		Insulation Plug Rs		Appelez-nous	-
34	G188375		Insulation Block Ls		Appelez-nous	-
35	G162690-01		Thermostat, Defrost		Appelez-nous	-
*11187	G189383		Hot Tube Repair Kit		Appelez-nous	-
