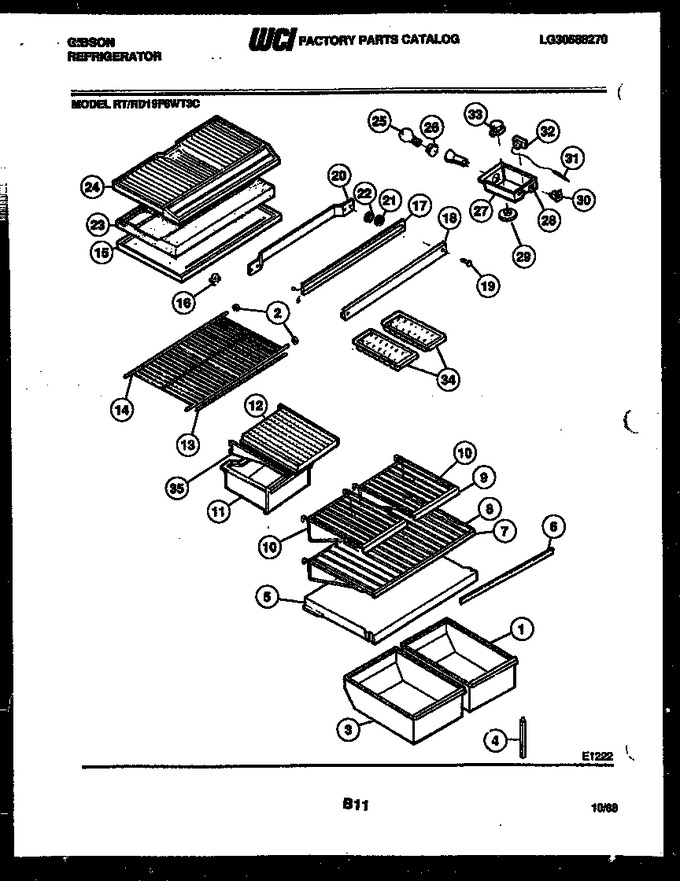

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G176639-28		Pan-crisper-rs		Appelez-nous	-
2	3201150		Protector-cap (2)				$ 4.57
3	G490015-46		Pan-crisper-ls		Appelez-nous	-
4	G166310-02		Support, Cover		Appelez-nous	-
5	G490064-01		Cover, Crisper		Appelez-nous	-
6	G180108-07		Gasket, Cover		Appelez-nous	-
7	G172410-07		Trim-front		Appelez-nous	-
8	G177390-14		Frame-full Shelf		Appelez-nous	-
9	G172410-17		Trim-front (2)		Appelez-nous	-
10	G177390-15		Frame-half (2)		Appelez-nous	-
11	G187181-01		Pan, Meat		Appelez-nous	-
12	G187195-01		Cover, Meat Pan		Appelez-nous	-
13	G172410-08		Trim-front		Appelez-nous	-
14	G177059-09		Shelf - Freezer		Appelez-nous	-
15	3016367		Top-refrigerator		Appelez-nous	-
16	G187200		Switch-light		Appelez-nous	-
17	3018916		Heater-mullion		Appelez-nous	-
18	3200369		Mullion-coffee		Appelez-nous	-
18	3200366		Mullion-white		Appelez-nous	-
18	3200367		Mullion-avocado		Appelez-nous	-
18	3200370		Mullion-almond		Appelez-nous	-
18	3200368		Mullion-wheat		Appelez-nous	-
19	G183103		Screw-mounting (4)		Appelez-nous	-
20	G490087		Strap, Mullion Mounting		Appelez-nous	-
21	G166847		Washer-steel (4)		Appelez-nous	-
22	G490082		Spacer (2)		Appelez-nous	-
23	G176777		Divider, Styro		Appelez-nous	-
24	G185912		Bottom, Freezer		Appelez-nous	-
25	K1186186		Bulb, Light		Appelez-nous	-
26	G168302		Socket Light		Appelez-nous	-
27	G176772-03		Box-control		Appelez-nous	-
28	G188379-02		Label-control Box		Appelez-nous	-
29	G490107-02		Knob, Control		Appelez-nous	-
30	G178402-02		Switch-slide		Appelez-nous	-
31	G142176-43		Tube-plastic		Appelez-nous	-
32	3200810		Control-temp		Appelez-nous	-
33	G187484		Timer-defrost		Appelez-nous	-
34	G156376-01		Tray-ice (2)		Appelez-nous	-
35	G187213-03		Rail-offset Ls		Appelez-nous	-
*12958	G187214-03		Rail-straight (rs)		Appelez-nous	-
15A	G162673		Screw-top Mtg (3) (non-illustrated)		Appelez-nous	-
27A	G187363		Screw		Appelez-nous	-
32A	G107080		Screw		Appelez-nous	-
33A	G105289		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
