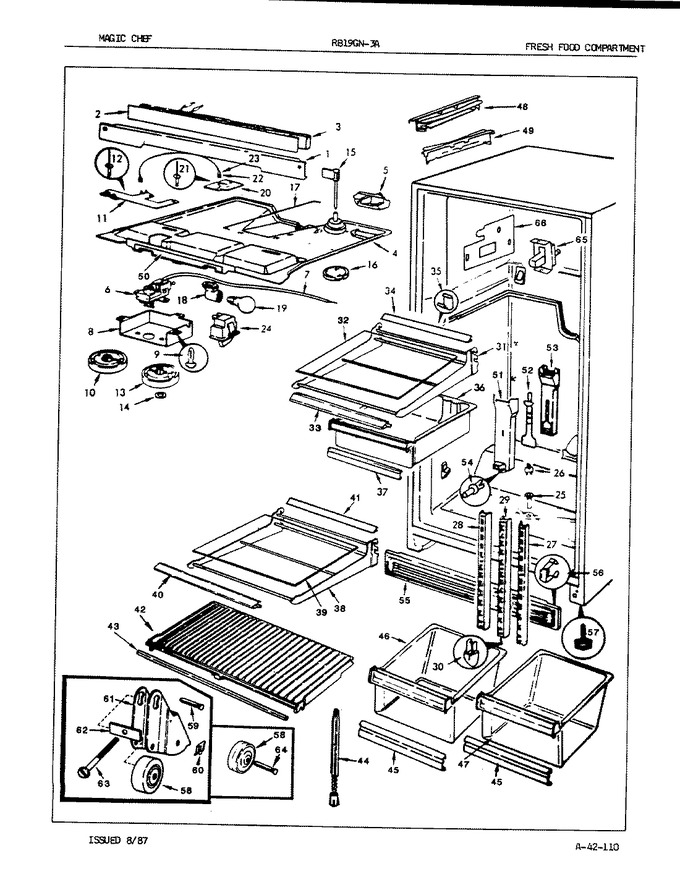

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9986-117		Screw		Appelez-nous	-
1	65797-2-AM		Divider, Mullion (alm)		Appelez-nous	-
2	60105-8		Heater Wire		Appelez-nous	-
3	60140-2		Insulation		Appelez-nous	-
3	60560-1		Wire Harness		Appelez-nous	-
4	60085-54		Top, F.f. Compartment		Appelez-nous	-
5	60120-2		Deflector		Appelez-nous	-
6	406013-1		Screw		Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 66545-1)			Immediately	$ 233.80
7	4008-12		Plastic Tube		Appelez-nous	-
8	405012-1		Screw		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	60061-1		Knob		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
13	60061-3		Knob		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
16	60082-3		Crank, Frzr Control		Appelez-nous	-
17	60078-3		Rod		Appelez-nous	-
18	60577-1		Socket, Light		Appelez-nous	-
19	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
20	60147-2		Bracket, Light Socket		Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
22	29675-22		Ground Wire		Appelez-nous	-
23	29675-28		Ground Wire		Appelez-nous	-
24	54653-28		Cord, Switch/light		Appelez-nous	-
24	W11384469		Switch, Light   (Replaces: 55732-1)			Immediately	$ 33.51
25	54531-8		Grommet		Appelez-nous	-
26	65039-1		Cap, Drain Tube		Appelez-nous	-
27	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
28	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
29	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
30	400037-28		Screw		Appelez-nous	-
30	60340-1		End Cap, Center Rail		Appelez-nous	-
31	60570-13		Frame, Shelf		Appelez-nous	-
32	65598-21		Glass Shelf		Appelez-nous	-
33	60524-3		Trim		Appelez-nous	-
34	65276-3		Trim		Appelez-nous	-
35	66333-1		Clip, Shelf Trim		Appelez-nous	-
36	66517-1		Pan, Meat		Appelez-nous	-
37	60132-74		Handle		Appelez-nous	-
38	60570-13		Frame, Shelf		Appelez-nous	-
39	65598-11		Glass Shelf		Appelez-nous	-
40	60524-3		Trim		Appelez-nous	-
41	65276-3		Trim		Appelez-nous	-
42	66502-3		Shelf, Crisper		Appelez-nous	-
43	60454-2		Trim		Appelez-nous	-
44	12001957		Support, Crisper Shelf   (Replaces: 66105-4)				$ 3.35
45	60132-72		Handle		Appelez-nous	-
46	60457-466		Pan, Crisper		Appelez-nous	-
47	60457-470		Pan, Crisper		Appelez-nous	-
48	66814-1		Rail, Meat Pan (rt)		Appelez-nous	-
49	66813-1		Rail, Meat Pan (lt)		Appelez-nous	-
50	60571-43		Insert		Appelez-nous	-
51	60094-12		Tunnel		Appelez-nous	-
52	60093-2		Damper, Air Tunnel		Appelez-nous	-
53	60092-1		Foam Insulator, Air Tunnel		Appelez-nous	-
54	28013-2		Rivet, Air Tunnel		Appelez-nous	-
55	60138-19		Kickplate		Appelez-nous	-
56	60100-1		Clip, Kickplate				$ 5.85
56	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
57	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
58	29834-2		Wheel		Appelez-nous	-
59	29835-2		Pin, Wheel		Appelez-nous	-
60	60216-1		Clip		Appelez-nous	-
61	59100-1		Bracket, Adjusting Wheel		Appelez-nous	-
62	59101-1		Tapping Plate, Wheel		Appelez-nous	-
63	406087-1		Bolt		Appelez-nous	-
64	64965-1		Pin, Wheel		Appelez-nous	-
65	60585-1		Switch, Mullion Heater		Appelez-nous	-
66	54653-32		Lead		Appelez-nous	-
66	29675-32		Ground Wire		Appelez-nous	-
66	402013-1		Screw		Appelez-nous	-
66	54653-33		Lead		Appelez-nous	-
66	60583-1		Bracket, Switch		Appelez-nous	-
