SELECT A DIAGRAM

01 - Blower Assembly


02 - Body


03 - Control Panel


04 - Oven


05 - Oven Door (solid)

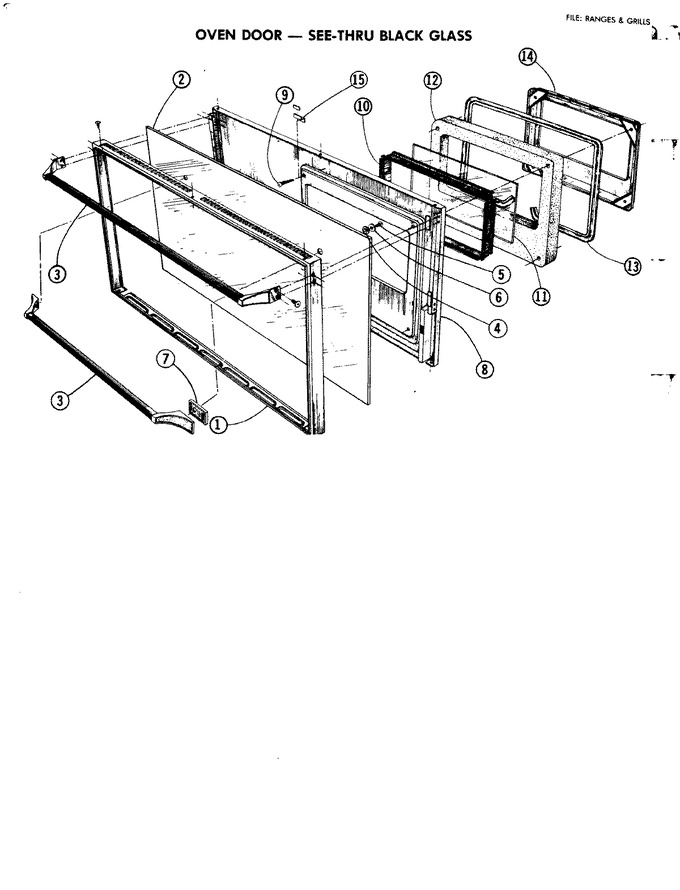

06 - Oven Door-see Thru Black Glass


07 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 12.62
1	700141		Screw		Appelez-nous	-
2	Y700443		Door Glass+		Appelez-nous	-
3	Y700442		Door Handle		Appelez-nous	-
4	715939		Bushing		Appelez-nous	-
5	W11164114		Screw 1   (Replaces: Y708312)				$ 3.76
6	Y700446		Washer				$ 5.27
7	Y700444		Mounting Pad		Appelez-nous	-
8	715938		Pad, Spacer		Appelez-nous	-
8	DE81-02991A		Oven Door Liner   (Replaces: 700015)				$ 29.11
9	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 12.62
10	787978		Glass Spacer		Appelez-nous	-
11	715284		Inner Glass		Appelez-nous	-
12	715315		Door Insulation Kit		Appelez-nous	-
13	715368		Oven Door Seal		Appelez-nous	-
14	WP486255		No Longer Available   (Replaces: 788098)				$ 5.54
15	715838		Bracket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
