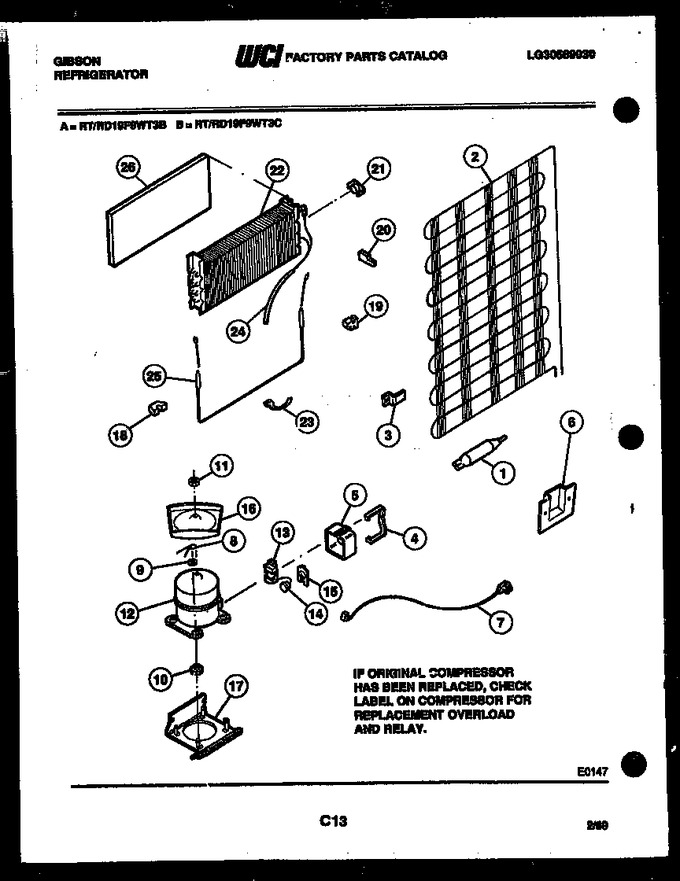

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G186717 | Drier |
|
- | |||||
| 2 | G163133 | Condenser |
|
- | |||||
| 3 | G164637 | Bracket-mtg (4) |
|
- | |||||
| 4 | 3001186 | Strap Bale |
|
- | |||||
| 5 | 3001345 | Cover, Terminal |
|
- | |||||
| 6 | G183584 | Cover, Wiring |
|
- | |||||
| 7 | G162549-01 | Service Cord |
|
- | |||||
| 8 | G163204 | Clip (4) |
|
- | |||||
| 9 | G168120 | Washer (4) |
|
- | |||||
| 10 | K1229571 | Grommet (4) |
|
- | |||||
| 11 | G164958 | Nut, Lock |
|
- | |||||
| 12 | 3916021 | Compressor |
|
- | |||||
| 13 | 3007171 | Relay |
|
- | |||||
| 14 | 3007416 | Overload |
|
- | |||||
| 15 | 3007535 | Overload Clip |
|
- | |||||
| 16 | G184715 | Defrost Pan-original Compressor |
|
- | |||||
| 17 | G184599 | Compressor Plate-mounting |
|
- | |||||
| 18 | G188375 | Block-insul Ls |
|
- | |||||
| 19 | G185299 | Block-insul Rs |
|
- | |||||
| 20 | G185276 | Plug, Block |
|
- | |||||
| 21 | G162690-01 | Thermostat, Defrost |
|
- | |||||
| 22 | G162506 | Evaporator |
|
- | |||||
| 23 | G165546 | Strap-aluminum |
|
- | |||||
| 24 | G147918 | Heat Exchanger |
|
- | |||||
| 25 | G178425-02 | Heater-defrost |
|
- | |||||
| 26 | G166511-02 | Insulator |
|
- | |||||
| *17611 | G189383 | Hot Tube Repair Kit |
|
- | |||||
| *17611 | G166062-01 | Harness-compressor |
|
- | |||||
| *17611 | 3916001 | Pan Retainer Kit-service |
|
- |
