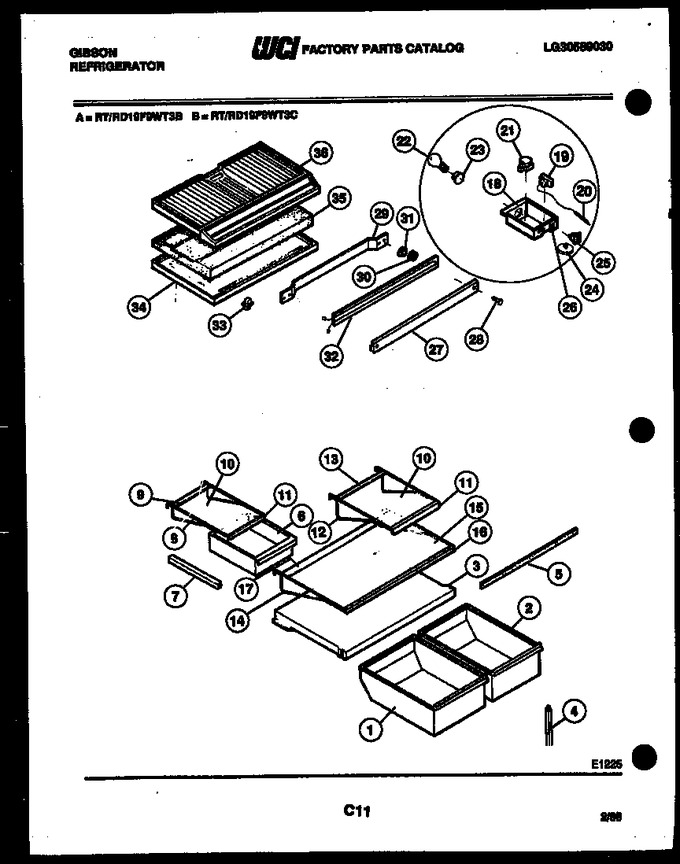

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G490015-37		Pan-crisper Ls		Appelez-nous	-
2	G176639-19		Pan-crisper Rs		Appelez-nous	-
3	G490064-01		Cover, Crisper		Appelez-nous	-
4	G166310-02		Support, Cover		Appelez-nous	-
5	G180108-04		Gasket, Cover		Appelez-nous	-
6	G176918-13		Meat Pan		Appelez-nous	-
7	G187215-03		Hanger, Pan Ls		Appelez-nous	-
8	G187218-05		Frame-meatkeeper Shelf		Appelez-nous	-
9	G172436-13		Trim-rear		Appelez-nous	-
10	G171654-51		Shelf, Glass (3)		Appelez-nous	-
11	G172410-17		Trim-front (3)		Appelez-nous	-
12	G171608-14		Frame-shelf (2)		Appelez-nous	-
13	G172436-14		Trim-rear (2)		Appelez-nous	-
14	G171608-15		Frame-full Shelf		Appelez-nous	-
15	G171654-52		Shelf Glass-full		Appelez-nous	-
16	G172410-07		Trim-front		Appelez-nous	-
17	G172436-18		Trim-rear		Appelez-nous	-
18	G174765-03		Control Box		Appelez-nous	-
18	G187363		Screw		Appelez-nous	-
19	3200810		Control-temperature		Appelez-nous	-
20	G142176-43		Tube-plastic		Appelez-nous	-
21	G187484		Timer-defrost		Appelez-nous	-
22	K1186186		Bulb, Light		Appelez-nous	-
23	G168302		Socket Light		Appelez-nous	-
24	G174759-01		Knob, Control		Appelez-nous	-
25	G178402-01		Switch Slide		Appelez-nous	-
26	G185865		Label - Control Box		Appelez-nous	-
27	G180373-09		Mullion Wheat		Appelez-nous	-
27	G180373-08		Mullion, Avocado		Appelez-nous	-
27	G180373-01		Mullion, White		Appelez-nous	-
27	G180373-10		Mullion Coffee		Appelez-nous	-
27	G180373-11		Mullion Almond		Appelez-nous	-
28	G183103		Screw, Mtg (2)		Appelez-nous	-
29	G490087		Strap, Mullion Mtg		Appelez-nous	-
30	G166847		Washer (2)		Appelez-nous	-
31	G490082		Spacer (2)		Appelez-nous	-
32	G177254		Heater, Mullion		Appelez-nous	-
33	G162672		Switch Light		Appelez-nous	-
34	3016367		Top-refrigerator		Appelez-nous	-
35	G176777		Divider, Styrofoam		Appelez-nous	-
36	G185912		Bottom, Freezer		Appelez-nous	-
*17604	G174818		Harness, Divider		Appelez-nous	-
16A	G170910		Clip-shelf (8) (non-illustrated)		Appelez-nous	-
19A	G107080		Screw		Appelez-nous	-
21A	G105289		Screw		Appelez-nous	-
34A	G162673		Screw-mtg (3) (non-illustrated)		Appelez-nous	-
7A	G187216-03		Hanger, Pan Rs (non-illustrated)		Appelez-nous	-
7B	G184823		Screw, Mtg (2) (non-illustrated)		Appelez-nous	-
