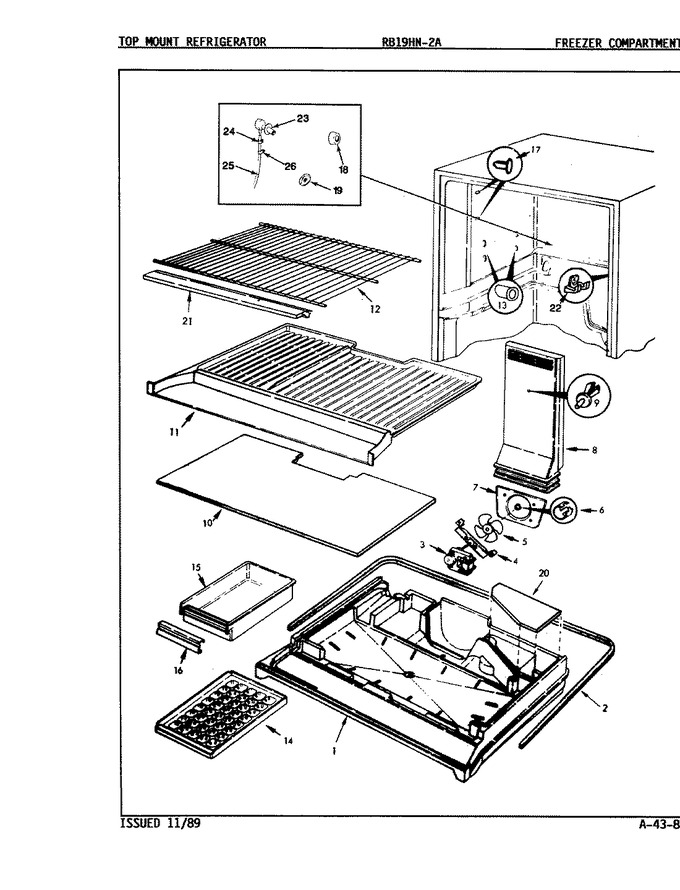

SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66606-1		Tray, Styrofoam Mullion		Appelez-nous	-
2	66325-6		Seal		Appelez-nous	-
3	WP61004888		Motor, Evaporator Fan   (Replaces: 54482-10)			Immediately	$ 104.99
3	406062-1		Screw		Appelez-nous	-
4	64856-1		Bracket, Fan Motor		Appelez-nous	-
4	400015-12		Screw		Appelez-nous	-
4	60565-1		Wire Harness		Appelez-nous	-
4	29675-30		Ground Wire		Appelez-nous	-
5	64359-1		Blade, Evaporator Fan		Appelez-nous	-
6	420092-900		Washer, Spring		Appelez-nous	-
7	60608-2		Orifice, Fan Blade		Appelez-nous	-
8	66044-3		Tunnel, Air		Appelez-nous	-
9	66045-1		Pin, Air Tunnel Mtg.		Appelez-nous	-
10	66403-2		Cover, Evaporator		Appelez-nous	-
11	66479-1		Bottom, Frz.		Appelez-nous	-
12	60438-10		Shelf		Appelez-nous	-
13	60313-1		Cup, Shelf		Appelez-nous	-
14	WP61002140		Ice Cube Tray   (Replaces: 60112-1)				$ 18.23
15	60653-1		Pan, Ice		Appelez-nous	-
16	60132-67		Handle		Appelez-nous	-
17	67557-1		Plug Button		Appelez-nous	-
17	60321-1		Plug		Appelez-nous	-
18	68187-1		Cap, Connector		Appelez-nous	-
19	68387-1		Cap, Grommet		Appelez-nous	-
20	66480-2		Cover, Plenum		Appelez-nous	-
21	68136-32		Trim, Shelf		Appelez-nous	-
22	66101-1		Stud, Shelf		Appelez-nous	-
22	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
23	68307-1		Grommet, Water Entry		Appelez-nous	-
24	WPM0114003		Clamp, Spring   (Replaces: 60333-4)				$ 9.95
25	WPB5705307		Tubing, Valve To Grommet   (Replaces: 67579-7)				$ 11.19
26	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
26	W10833902		Clamp, Tubing   (Replaces: 53516-8)				$ 9.89
