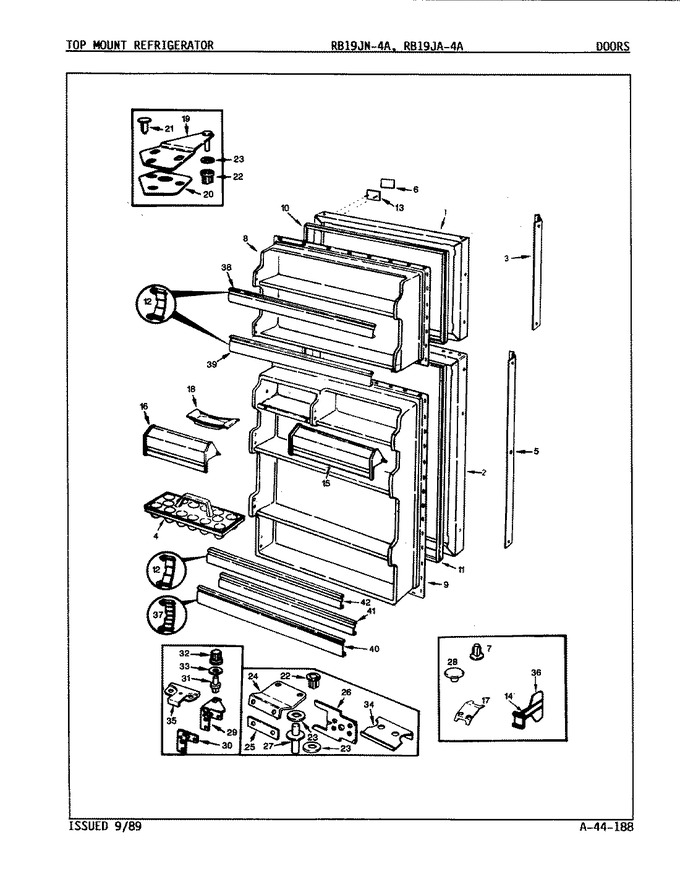

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60033-61-AM		Outer Panel		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	60032-56-AM		Outer Panel		Appelez-nous	-
3	68402-3		Handle, Extruded		Appelez-nous	-
4	60066-1		Tray, Egg		Appelez-nous	-
5	65275-4		Screw		Appelez-nous	-
5	60319-3		Anchor		Appelez-nous	-
5	68402-4		Handle, F.f. Door		Appelez-nous	-
5	56209-3		Clip, Stop Screw		Appelez-nous	-
6	66982-10		Insert, Nameplate		Appelez-nous	-
7	66920-3		Plug Button		Appelez-nous	-
8	65928-5		Liner, Frz. Door		Appelez-nous	-
9	66601-10		Liner, F.f. Door		Appelez-nous	-
9	65275-5		Screw		Appelez-nous	-
10	66199-5		Gasket, Frz. Door		Appelez-nous	-
11	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
12	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
13	66981-4		Insert, Nameplate		Appelez-nous	-
14	66522-3		Organizer, Shelf		Appelez-nous	-
15	66184-362		Door, Dairy		Appelez-nous	-
16	66184-364		Door, Dairy		Appelez-nous	-
17	60123-2		Clip, Stop Screw		Appelez-nous	-
18	29936-2		Tray, Butter		Appelez-nous	-
19	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
19	53709-18		Door Hinge, Upper		Appelez-nous	-
20	65031-1		Shim, Upper Hinge		Appelez-nous	-
21	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
22	66036-1		Bushing,top/center Hinge		Appelez-nous	-
23	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
23	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
24	60031-2		Door Hinge, Center		Appelez-nous	-
25	60034-1		Spacer, Center Hinge		Appelez-nous	-
26	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
26	60622-1		Tapping Plate		Appelez-nous	-
27	60035-4		Pin, Center Hinge		Appelez-nous	-
28	56186-6		Plug Button, (almond)		Appelez-nous	-
29	60630-8		Door Hinge, Lower		Appelez-nous	-
29	403100-1		Screw		Appelez-nous	-
30	60626-1		Shim, Lower Hinge		Appelez-nous	-
31	53672-1		Pin, Lower Hinge		Appelez-nous	-
32	66034-1		Bushing, Lower Hinge				$ 19.76
33	54233-2		Washer		Appelez-nous	-
34	60030-1		Door Stop		Appelez-nous	-
35	60419-1		Door Stop		Appelez-nous	-
35	9986-108		Screw		Appelez-nous	-
36	64097-11		Organizer, Shelf		Appelez-nous	-
37	65246-1		Retainer				$ 5.04
38	WP61003045		Trim, Shelf   (Replaces: 68375-11)				$ 129.55
39	WP61003045		Trim, Shelf   (Replaces: 68375-17)				$ 129.55
40	68376-10		Trim, Shelf		Appelez-nous	-
41	WP61003045		Trim, Shelf   (Replaces: 68375-11)				$ 129.55
42	WP61003045		Trim, Shelf   (Replaces: 68375-11)				$ 129.55
