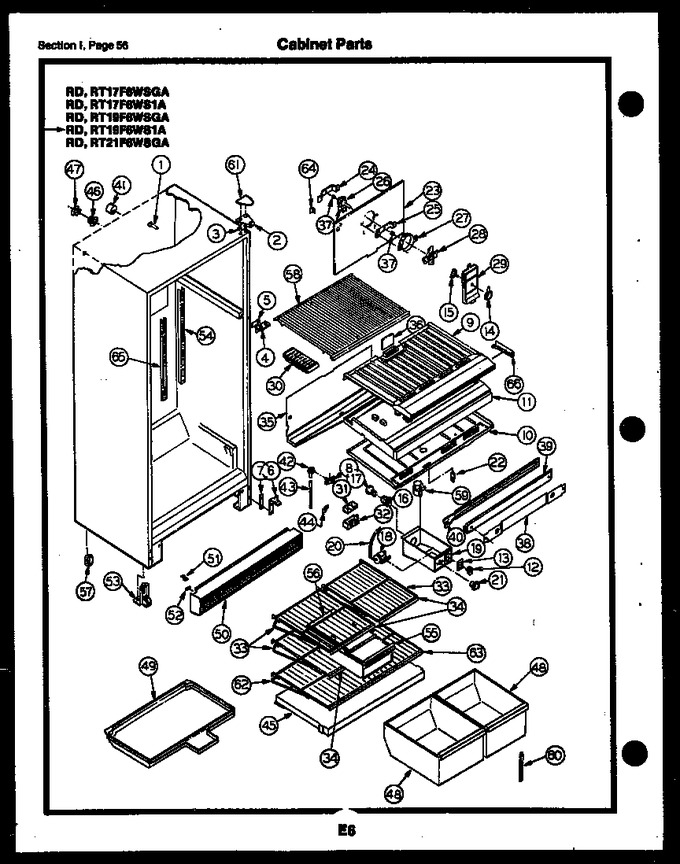

26 - Door Parts
27 - Cabinet Parts
28 - Cabinet Parts
29 - Cabinet Parts
30 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 26 | G173301 | Motor - Blower (non-illustrated) |
|
- | |||||
| 27 | G167217 | Ring, Fan Orifice |
|
- | |||||
| 28 | G174705 | Fan |
|
- | |||||
| 29 | G162512-08 | Cover-fan |
|
- | |||||
| 30 | G156376-13 | Tray, Ice (2) |
|
- | |||||
| 31 | G162178 | Cover, Air Deflector |
|
- | |||||
| 32 | G162675 | Deflector Air |
|
- | |||||
| 33 | G162129-10 | Shelf - Cantilever (3) |
|
- | |||||
| 34 | G141727-43 | Trim - Shelf (3) |
|
- | |||||
| 35 | G170071 | Trough Drain |
|
- | |||||
| 36 | G168866 | Pad - Drain Trough |
|
- | |||||
| 37 | G157666 | Bushing-motor Mtg (2) |
|
- | |||||
| 38 | G165781 | Strap, Mullion Mounting |
|
- | |||||
| 39 | G162051 | Mullion |
|
- | |||||
| 40 | G177254 | Heater, Mullion |
|
- | |||||
| 41 | G85642 | Tube, In Ferrule (2) |
|
- | |||||
| 42 | G162180 | Elbow, Drain |
|
- | |||||
| 43 | G155529-01 | Tube, Drain |
|
- | |||||
| 44 | G168978 | Clamp-tube (2) |
|
- | |||||
| 45 | G161901-02 | Cover-crisper |
|
- | |||||
| 46 | G174733 | Ferrule, Inner |
|
- | |||||
| 47 | G174734 | Ferrule Outer |
|
- | |||||
| 48 | G179706-32 | Pan - Storage - Fresh Veg. |
|
- | |||||
| 49 | G162890 | Pan, Defrost |
|
- | |||||
| 50 | G161904-01 | Kickplate |
|
- | |||||
| 51 | G162994 | Clip-grille (2) |
|
- | |||||
| 52 | G154397 | Plug - Lower Grille |
|
- | |||||
| 53 | G166138 | Roller Assembly - Front (2) |
|
- | |||||
| 54 | G170695 | Channel, Shelf (2) |
|
- | |||||
| 55 | G176918-13 | Pan, Meat |
|
- | |||||
| 56 | G177106-01 | Cover, Meat Pan |
|
- | |||||
| 57 | G162808 | Roller (2) |
|
- | |||||
| 58 | G163002-06 | Shelf - Freezer |
|
- | |||||
| 27A | G167542 | Nut No. 8 U-type (2) |
|
- | |||||
| 29A | G185864 | Label - Fan Cover - Lower |
|
- | |||||
| 29B | G185863 | Label - Fan Cover - Upper |
|
- | |||||
| 34A | G138399 | Clip - Trim (12) |
|
- | |||||
| 44A | G160578 | Screw |
|
- | |||||
| 45A | G180108-02 | Gasket-cover |
|
- | |||||
| 48A | G179706-33 | Pan - Storage - Fresh Fruits |
|
- | |||||
| 53A | G145103 | Bolt, Housing To Front Rail (2) |
|
- | |||||
| 54A | G166567 | Screw, Channel To Liner (6) |
|
- | |||||
| 57A | G162809 | Pin Roller (2) |
|
- | |||||
| 57B | G162662 | Nut, 1/4 Speed (2) |
|
- | |||||
| 58A | G163105 | Support, Shelf (8) |
|
- | |||||
| 58B | G163104 | Screw - Support To Liner (8) |
|
- |
