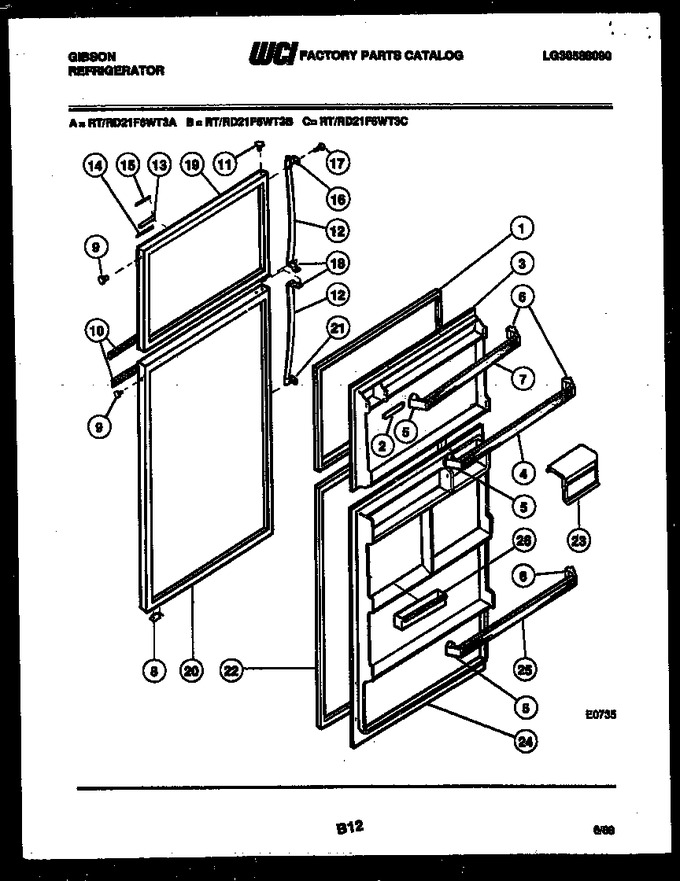

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186932-14		Gasket-freezer		Appelez-nous	-
2	G187492-02		Rack, Juice		Appelez-nous	-
3	G187552-02		Inner Panel-freezer		Appelez-nous	-
4	G161019-65		Rack-door		Appelez-nous	-
5	G178284-02		Support-ls (4)		Appelez-nous	-
6	G178287-02		Support-rs (4)		Appelez-nous	-
7	G161019-66		Rack-door		Appelez-nous	-
8	G155072		Stop, Door (2)		Appelez-nous	-
9	G162977-01		Button Plug-white		Appelez-nous	-
9	G162977-09		Button Plug-wheat		Appelez-nous	-
9	G162977-10		Button Plug-coffee		Appelez-nous	-
9	G162977-08		Button Plug-avocado		Appelez-nous	-
9	G162977-11		Button Plug-almond		Appelez-nous	-
10	G167150-12		Trim-door		Appelez-nous	-
11	G169332-08		Button Plug-avocado		Appelez-nous	-
11	G169332-10		Button-plug, Coffee		Appelez-nous	-
11	G169332-11		Button Plug, Almond		Appelez-nous	-
11	G169332-09		Button Plug, Wheat		Appelez-nous	-
11	G169332-01		Button Plug, White		Appelez-nous	-
12	G170495-24		Grip-handle (2)		Appelez-nous	-
13	G175117-02		Nameplate-frame		Appelez-nous	-
14	G175393-01		Label, Lower		Appelez-nous	-
15	G188378-02		Label, Upper		Appelez-nous	-
16	G179800		Handle End-top		Appelez-nous	-
17	G185566		Screw		Appelez-nous	-
18	G187329-01		Handle End (2)		Appelez-nous	-
19	G188158		Freezer Door-white		Appelez-nous	-
19	G188158-11		Freezer Door-almond		Appelez-nous	-
19	G188158-10		Freezer Door-coffee		Appelez-nous	-
19	G188158-09		Freezer Door-wheat		Appelez-nous	-
19	G188158-08		Freezer Door-avocado		Appelez-nous	-
20	G178694-08		Refrigerator Door-avocado		Appelez-nous	-
20	G178694		Refrigerator Door-white		Appelez-nous	-
20	G178694-11		Refrigerator Door-almond		Appelez-nous	-
20	G178694-09		Refrigerator Door-wheat		Appelez-nous	-
20	G178694-10		Refrigerator Door-coffee		Appelez-nous	-
21	G179801		Handle End-bottom		Appelez-nous	-
22	G186932-13		Gasket-refrigerator		Appelez-nous	-
23	G187460-02		Dairy Door		Appelez-nous	-
24	G187564-02		Inner Panel-refrigerator		Appelez-nous	-
25	G161019-65		Rack (2)		Appelez-nous	-
26	G187461-01		Utility Bin		Appelez-nous	-
*86415	G89643		Insulation (bulk)		Appelez-nous	-
13A	G153407-60		Tape-frame Mounting (non-illustrated)		Appelez-nous	-
19A	G183138		Bearing, Hinge (4) (non-illustrated)		Appelez-nous	-
20A	G183138		Bearing, Hinge (4) (non-illustrated)		Appelez-nous	-
24A	G162585		Screw		Appelez-nous	-
25A	3017719		Snugger-rack (non-illustrated)		Appelez-nous	-
25A	G187079-01		Snugger Rack (non-illustrated)		Appelez-nous	-
3A	G162585		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
