02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:

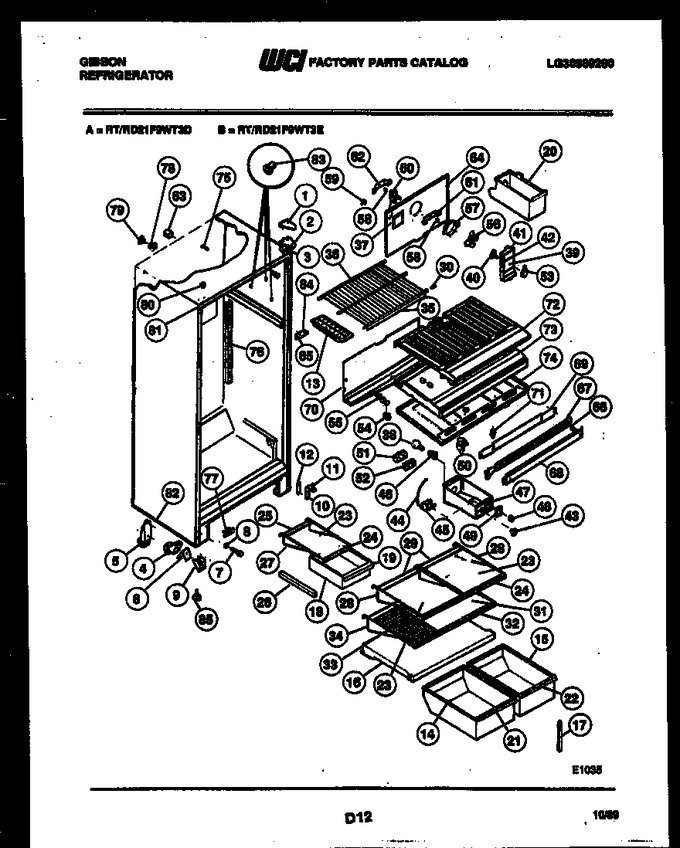

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G183558-08 | Cover Hinge, Avoc. |
|
- | |||||
| 1 | G183558-09 | Cover Hinge, Wheat |
|
- | |||||
| 1 | G183558-10 | Cover Hinge, Coffee |
|
- | |||||
| 1 | G183558-11 | Cover Hinge, Almond |
|
- | |||||
| 1 | G183558-01 | Cover Hinge, White |
|
- | |||||
| 2 | G183714 | Hinge |
|
- | |||||
| 3 | G183861 | Shim |
|
- | |||||
| 4 | G177021 | Roller Assy |
|
- | |||||
| 5 | G183407 | Roller Assy |
|
- | |||||
| 6 | G178494 | Spring |
|
- | |||||
| 7 | G177024 | Bolt, 1/4-20 |
|
- | |||||
| 8 | G182799 | Washer Nylon (2) |
|
- | |||||
| 9 | G177302 | Support |
|
- | |||||
| 10 | G191474 | Bracket-hinge |
|
- | |||||
| 11 | G166505 | Pin Hinge |
|
- | |||||
| 12 | G163203 | Shim |
|
- | |||||
| 13 | G156376-01 | Tray-ice (2) |
|
- | |||||
| 14 | G490015-49 | Pan, Crisper |
|
- | |||||
| 15 | G176639-29 | Pan, Crisper |
|
- | |||||
| 16 | G490064-08 | Cover Crisper |
|
- | |||||
| 17 | G166310-02 | Support-crisper |
|
- | |||||
| 18 | G187181-02 | Pan, Meat |
|
- | |||||
| 19 | G177343-19 | Trim |
|
- | |||||
| 20 | G163022-03 | Container, Ice |
|
- | |||||
| 21 | G177343-17 | Trim |
|
- | |||||
| 22 | G177343-18 | Trim |
|
- | |||||
| 23 | G171654-57 | Shelf-glass (3) |
|
- | |||||
| 24 | G172410-05 | Trim (2) |
|
- | |||||
| 25 | G172436-15 | Trim-rear |
|
- | |||||
| 26 | G187215-03 | Hanger, Pan Ls |
|
- | |||||
| 27 | G187218-11 | Frame-cantilever |
|
- | |||||
| 28 | G171608-20 | Frame-cantilever (2) |
|
- | |||||
| 29 | G172436-10 | Trim-rear (2) |
|
- | |||||
| 30 | G166495-01 | Cap Protector (2) |
|
- | |||||
| 31 | G171654-54 | Shelf-glass 4 In 1 |
|
- | |||||
| 32 | G171410-02 | Trim-front 4 In 1 |
|
- | |||||
| 33 | G186661-02 | Shelf, 4 In 1 |
|
- | |||||
| 34 | G186665-03 | Frame-cantilever |
|
- | |||||
| 35 | G172410-11 | Trim-shelf |
|
- | |||||
| 36 | G177059-07 | Shelf-freezer |
|
- | |||||
| 37 | G162827-12 | Plug - Decor. |
|
- | |||||
| 38 | G165723 | Bulb, Light |
|
- | |||||
| 39 | G162512-08 | Cover-fan |
|
- | |||||
| 40 | G162661 | Damper |
|
- | |||||
| 41 | G185863 | Label - Upper |
|
- | |||||
| 42 | G185864 | Label - Lower |
|
- | |||||
| 43 | G490107-02 | Knob, Control |
|
- | |||||
| 44 | G142176-11 | Tube Plastic |
|
- | |||||
| 45 | G162205-11 | Control |
|
- | |||||
| 46 | G168302 | Socket |
|
- | |||||
| 47 | G176722-03 | Box-control |
|
- | |||||
| 48 | G178402-02 | Switch-slide |
|
- | |||||
| 49 | G188379-02 | Label |
|
- | |||||
| 50 | G187484 | Timer |
|
- | |||||
| 51 | G162675 | Deflector Air |
|
- | |||||
| 52 | G162178 | Cover, Deflector |
|
- | |||||
| 53 | G168702 | Knob, Damper |
|
- | |||||
| 54 | G162179 | Spout, Drain |
|
- | |||||
| 55 | G184920-01 | Tube, Drain |
|
- | |||||
| 56 | G174705 | Fan |
|
- | |||||
| 57 | G167217 | Ring |
|
- | |||||
| 58 | G157666 | Bushing (2) |
|
- | |||||
| 59 | G164571 | Bracket |
|
- | |||||
| 60 | G158289 | Motor |
|
- | |||||
| 61 | G185302 | Bracket-front |
|
- | |||||
| 62 | G185303 | Bracket-rear |
|
- | |||||
| 63 | G85642 | Tube (2) |
|
- | |||||
| 64 | G184609 | Cover Coil |
|
- | |||||
| 65 | G163207 | Bracket, Hinge |
|
- | |||||
| 66 | G490082 | Spacer (2) |
|
- | |||||
| 67 | G168722 | Heater |
|
- | |||||
| 10A | G181020 | Screw (2) (non-illustrated) |
|
- | |||||
| 16A | G180108-07 | Gasket-cvr (non-illustrated) |
|
- | |||||
| 26A | G187216-03 | Hanger, Pan Rs (non-illustrated) |
|
- | |||||
| 26B | G184823 | Screw-hanger (2) (non-illustrated) |
|
- | |||||
| 32A | G172436-19 | Trim-rear 4 In 1 (non-illustrated) |
|
- | |||||
| 3A | G167103 | Screw, Hinge (2) (non-illustrated) |
|
- | |||||
| 3B | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 3C | G164355 | Washer-nylon 5/16 X 5/8 (non-illustrated) |
|
- | |||||
| 40A | G162662 | Nut-push (non-illustrated) |
|
- | |||||
| 50A | G105289 | Screw |
|
- | |||||
| 54A | G185279 | Pin, Push (2) (non-illustrated) |
|
- | |||||
| 55A | G101747 | Clamp |
|
- | |||||
| 5A | G160578 | Screw |
|
- | |||||
| 5B | G177025 | Bolt, 1/4-28 X 1/2 (non-illustrated) |
|
- | |||||
| 64A | G167542 | Nut-``u`` Type (non-illustrated) |
|
- | |||||
| 65A | G183103 | Screw (4) (non-illustrated) |
|
- | |||||
| 65B | G166847 | Washer (4) (non-illustrated) |
|
- |
