02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts

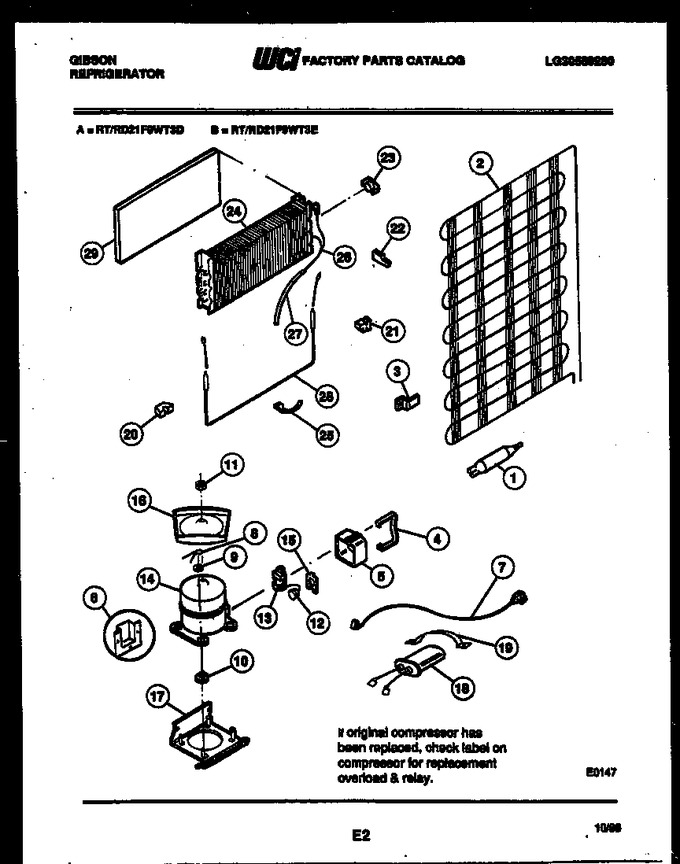

05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186717		Drier		Appelez-nous	-
2	G163133		Condenser		Appelez-nous	-
3	G164637		Bracket-condenser (2)		Appelez-nous	-
4	G166057		Strap, Bale		Appelez-nous	-
5	3006411		Cover-terminal		Appelez-nous	-
6	G183584		Cover, Wiring		Appelez-nous	-
7	G162549-01		Cord, Service		Appelez-nous	-
8	G163204		Clip Compr (4)		Appelez-nous	-
9	G164634		Washer-compr (4)		Appelez-nous	-
10	G177617		Grommet (4)		Appelez-nous	-
11	G164958		Nut		Appelez-nous	-
12	08017532		Overload		Appelez-nous	-
13	3007173		Relay		Appelez-nous	-
14	G189462		Compr W/ Elect		Appelez-nous	-
16	G184715		Pan, Defrost		Appelez-nous	-
17	G184599		Plate-compr		Appelez-nous	-
18	G188885-02		Capacitor		Appelez-nous	-
19	G188897		Strap-capacitor		Appelez-nous	-
20	G188375		Block Ls		Appelez-nous	-
21	G185299		Block R.s.		Appelez-nous	-
22	G185276		Plug, Block		Appelez-nous	-
23	G162690-01		Thermo. Defrost		Appelez-nous	-
24	G162506		Evaporator		Appelez-nous	-
25	G165546		Strap-aluminum (2)		Appelez-nous	-
26	G147918		Heat Exchanger		Appelez-nous	-
27	G125963-68		Sleeve, Vinyl		Appelez-nous	-
28	G178425-02		Heater-defrost		Appelez-nous	-
29	G166511-01		Insulator-evaporator		Appelez-nous	-
*16831	G189383		Hot Tube Repair Kit		Appelez-nous	-
*16831	G166062-01		Harness-compressor		Appelez-nous	-
*16831	G189229-07		Heater, Hot Tube		Appelez-nous	-
5A	G161655		Clamp-tube (non-illustrated)		Appelez-nous	-
7A	G165184		Clamp-cable (non-illustrated)		Appelez-nous	-
