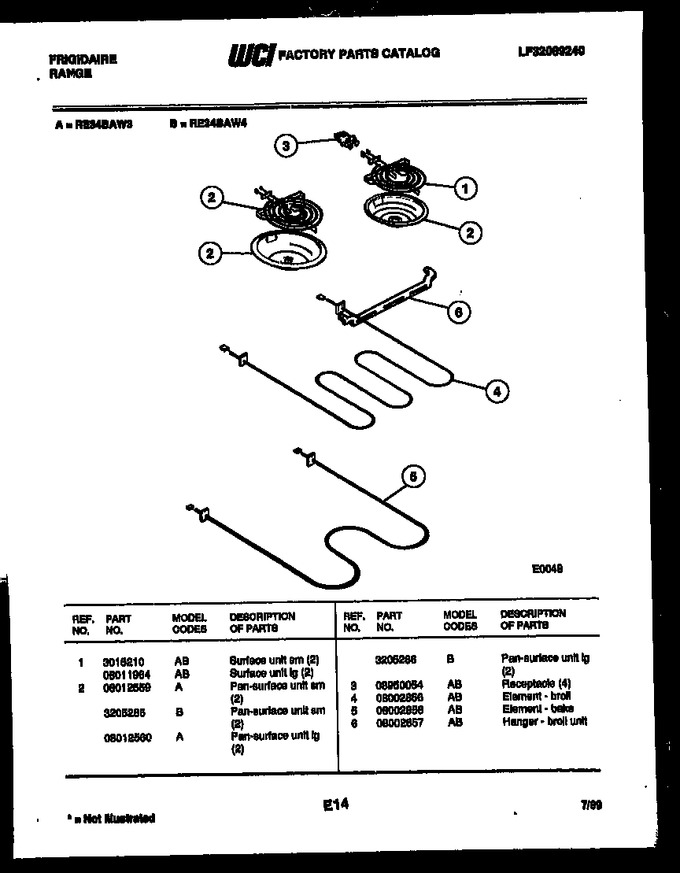

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015210 | Surface Unit Sm (2) |
|
- | |||||
| 2 | 3205286 | Pan-surface Unit Lg (2) |
|
- | |||||
| 2 | 3205285 | Pan-surface Unit Sm (2) |
|
- | |||||
| 3 | 08950054 | Receptacle (4) |
|
- | |||||
| 4 | 08002856 | Element - Broil |
|
- | |||||
| 5 | 08002858 | Element - Bake |
|
- | |||||
| 6 | 08002857 | Support-broil Element |
|
- | |||||
| 1A | 08011964 | Surface Unit Lg (2) |
|
- |
