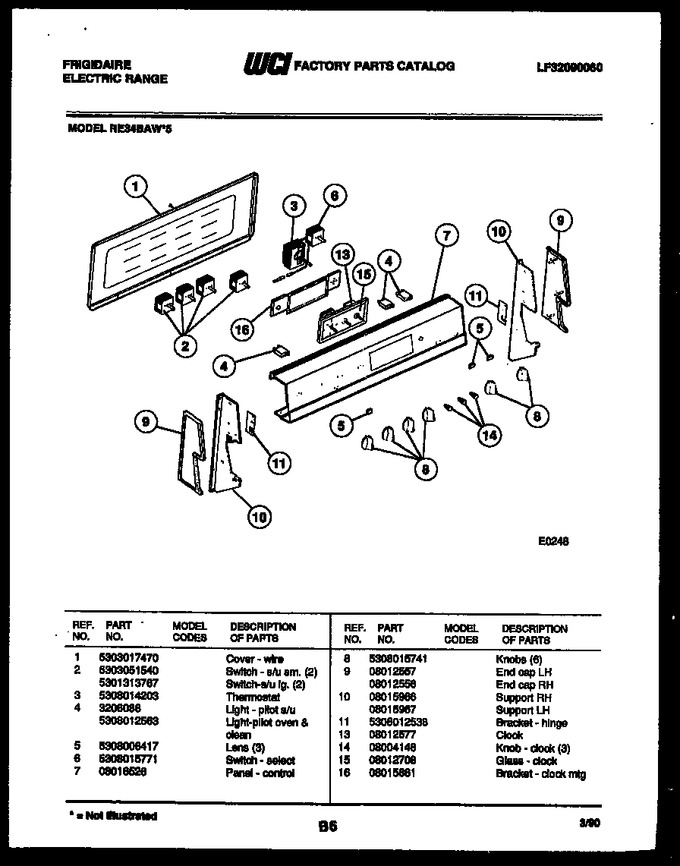

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017470 | Cover, Wire. |
|
- | |||||
| 2 | 5303051540 | Switch, S/u Sm (2) |
|
- | |||||
| 3 | 5308014203 | Thermostat |
|
- | |||||
| 4 | 3206088 | Light-pilot S/u |
|
- | |||||
| 5 | 5308006417 | Lens (3) |
|
$ 19.06 | |||||
| 6 | 5308015771 | Switch, Select |
|
- | |||||
| 7 | 08016526 | Panel - Control |
|
- | |||||
| 8 | 5308015741 | Knobs (6) |
|
$ 91.02 | |||||
| 9 | 08012557 | End Cap Lh |
|
- | |||||
| 10 | 08015966 | Support Rh |
|
- | |||||
| 11 | 5308012538 | Bracket - Hinge |
|
- | |||||
| 13 | 08012577 | Clock |
|
- | |||||
| 14 | 08004148 | Knob, Clock (3) |
|
- | |||||
| 15 | 08012708 | Glass - Clock |
|
- | |||||
| 16 | 08015861 | Bracket - Clock Mtg |
|
- | |||||
| 10A | 08015967 | Support Lh |
|
- | |||||
| 2A | 5301313767 | Switch-s/u Lg. (2) |
|
- | |||||
| 4A | 5308012563 | Light-pilot Oven & Clean |
|
- | |||||
| 9A | 08012556 | End Cap Rh |
|
- |
