New Model Search:

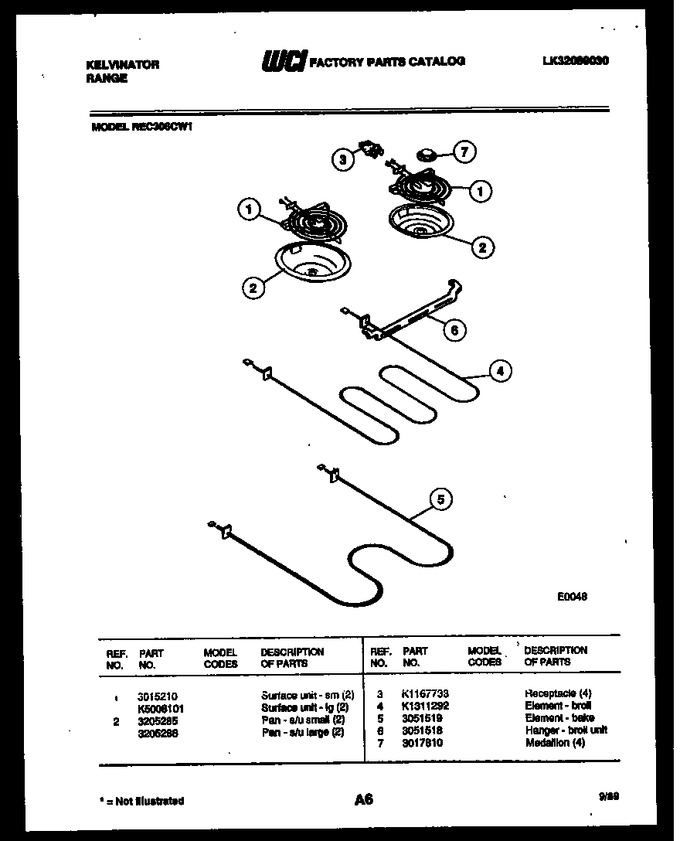

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015210 | Surface Unit Sm (2) |
|
- | |||||
| 2 | 3205285 | Pan - S/u Small (2) |
|
- | |||||
| 3 | K1167733 | Receptacle (4) |
|
- | |||||
| 4 | K1311292 | Element Broil |
|
- | |||||
| 5 | 3051519 | Element - Bake |
|
- | |||||
| 6 | 3051518 | Hanger - Broil Unit |
|
- | |||||
| 7 | 3017810 | Medallion (4) |
|
- | |||||
| 1A | K5008101 | Surface Unit - Lg (2) |
|
- | |||||
| 2A | 3205286 | Pan - S/u Large (2) |
|
- |
