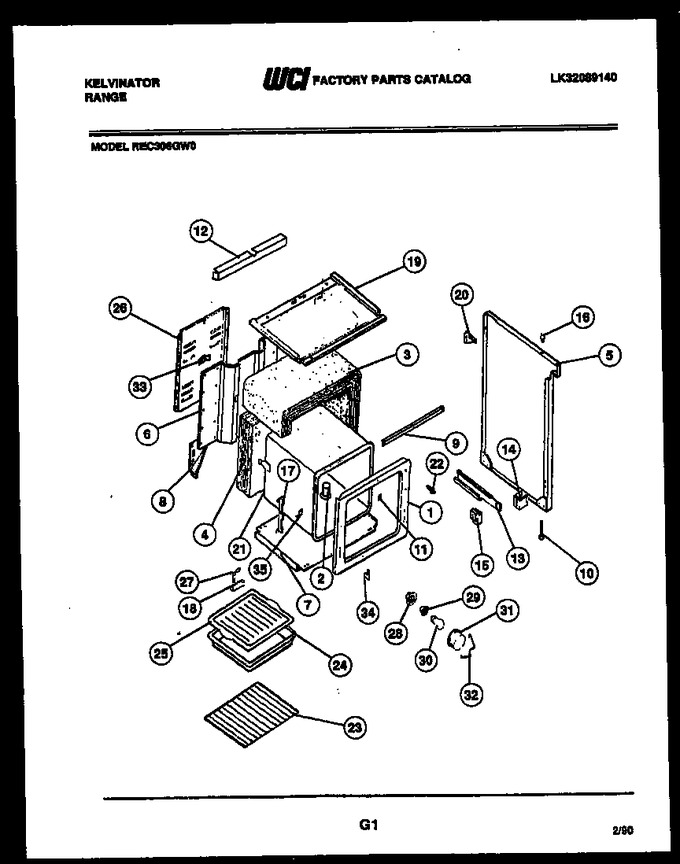

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard Parts
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Parts
06 - Drawer Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207446 | Frame-front |
|
- | |||||
| 2 | 08012541 | Tube-oven Vent |
|
- | |||||
| 3 | 3051521 | Insulation - Oven Wrap |
|
- | |||||
| 4 | 3051630 | Insulation-oven Back |
|
- | |||||
| 5 | 08012529 | Pnl-side Rh Almd |
|
- | |||||
| 6 | 3205757 | Back, Range |
|
- | |||||
| 7 | 3206275 | Panel, Bottom |
|
- | |||||
| 8 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 9 | 5303207391 | Support-subtop |
|
- | |||||
| 10 | 3205294 | Screw - Leveling (4) |
|
- | |||||
| 11 | 3202082 | Cover Seam |
|
- | |||||
| 12 | 3205755 | Shield-wire |
|
- | |||||
| 13 | 08015746 | Rail - Drawer Rh |
|
- | |||||
| 14 | 3051653 | Spacer, Drwr Rail (2) |
|
- | |||||
| 15 | 3051654 | Guide - Drwr Fr (2) |
|
- | |||||
| 16 | 08003107 | Bumper - Cooktop (4) |
|
- | |||||
| 17 | 3201631 | Hinge - Assy (2) |
|
$ 58.22 | |||||
| 18 | 3051098 | Block Terminal |
|
- | |||||
| 19 | 08012542 | Panel - Subtop |
|
- | |||||
| 20 | 3204821 | Gusset, Backguard (2) |
|
- | |||||
| 21 | 3205759 | Liner-oven |
|
- | |||||
| 22 | K1314211 | Switch, Oven Light |
|
- | |||||
| 23 | 3131973 | Rack-oven |
|
- | |||||
| 24 | 3205232 | Pan, Broiler |
|
- | |||||
| 25 | 3205234 | Grill - Broiler |
|
- | |||||
| 26 | 3051856 | Wire Cover |
|
- | |||||
| 27 | K1145190 | Strap-ground |
|
- | |||||
| 28 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 29 | 08011085 | Receptacle Oven Light |
|
- | |||||
| 30 | 3013071 | Bulb |
|
- | |||||
| 31 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 32 | 3205904 | Retainer - Lens |
|
- | |||||
| 33 | 3016281 | Spring, Oven |
|
- | |||||
| 34 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 35 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| *10694 | 9126 | Clip - Capillary (2) |
|
$ 24.99 | |||||
| 13A | 3051652 | Rail, Drawer Lh |
|
- | |||||
| 32A | 3934063 | Anti-tip Kit, (non-illustrated) |
|
- | |||||
| 5A | 08012530 | Pnl-side Lh Almd |
|
- | |||||
| 8A | 3017482 | Gusset-rear, Lh |
|
- |
