View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Drawer
04 - Body
05 - Door Parts
06 - Cooktop Parts
07 - Broiler Parts
SELECT A DIAGRAM
New Model Search:

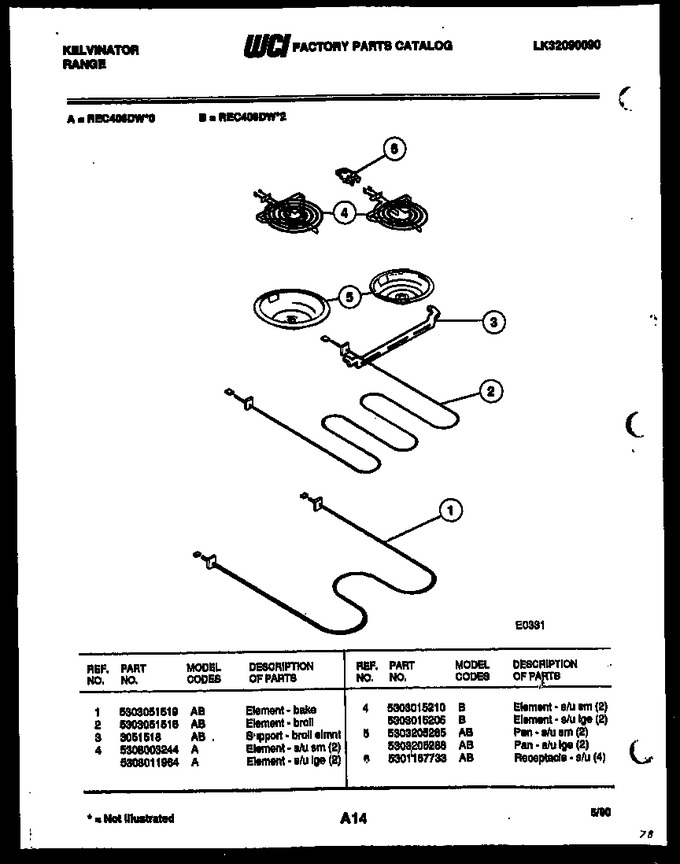

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303051519 | Element-bake |
|
Immediately | $ 44.70 | ||||
| 2 | 5303051516 | Element-broil |
|
$ 189.23 | |||||
| 3 | 3051518 | Support - Broil Elmnt |
|
- | |||||
| 4 | 5303015210 | Element S/u - Sm (2) |
|
- | |||||
| 5 | 5303205285 | Pan - S/u Sm (2) |
|
- | |||||
| 6 | 5303935058 | Receptacle - S/u (4) (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 4A | 5303015205 | Element S/u - Lge (2) |
|
- | |||||
| 4A | 5308011964 | Element - S/u Lge (2) |
|
$ 209.08 | |||||
| 5A | 5303205286 | Pan - S/u Lge (2) |
|
- |
