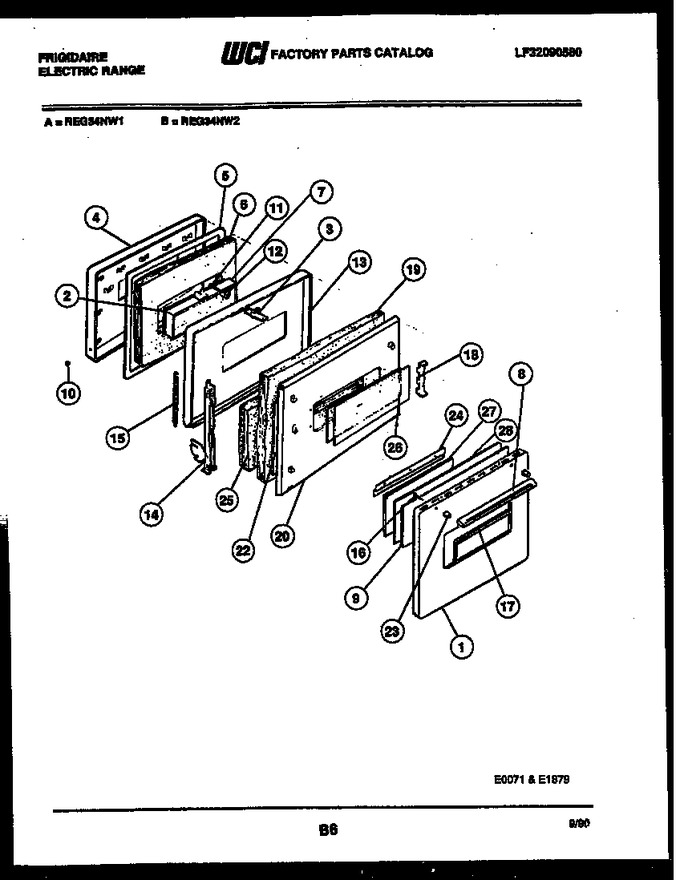

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08003150 | Panel-door-white |
|
- | |||||
| 2 | 3051706 | Gasket, Window |
|
- | |||||
| 3 | 5301167830 | Strike |
|
- | |||||
| 4 | 3017634 | Baffle |
|
- | |||||
| 5 | 3206078 | Gasket |
|
- | |||||
| 6 | 3008673 | Insulation, Baffle |
|
- | |||||
| 7 | 5303210230 | Window-assy |
|
- | |||||
| 8 | 5308012552 | Handle |
|
- | |||||
| 9 | 5301318805 | Insulation-panel |
|
- | |||||
| 10 | 3051807 | Button, Plug (2) |
|
- | |||||
| 11 | 5303051859 | Screw 10 X 24 (2) |
|
- | |||||
| 12 | 3051785 | Washer-padded (2) |
|
- | |||||
| 13 | 3017530 | Liner, Door |
|
- | |||||
| 14 | 5303207589 | Hinge, Assy (2) |
|
- | |||||
| 15 | 5308003186 | Spring (2) |
|
- | |||||
| 16 | K5104201 | Screw, Handle |
|
- | |||||
| 17 | 5301313568 | Moulding-j |
|
- | |||||
| 18 | 3204652 | Retainer, Glass (2) |
|
- | |||||
| 19 | 5301322652 | Insulation, Airwash |
|
- | |||||
| 20 | 3051712 | Panel, Airwash |
|
- | |||||
| 22 | 3051862 | Foil, Aluminum |
|
- | |||||
| 23 | 5308003153 | Spacer-handle, (2) |
|
- | |||||
| 24 | 5301313344 | Bracket-mtg (2) |
|
- | |||||
| 25 | 3008677 | Insulation, Liner |
|
- | |||||
| 26 | 5303051713 | Glass, Inner |
|
- | |||||
| 27 | 5308012512 | Glass, Outer |
|
- | |||||
| 28 | 5301314506 | Panel-insulator Pad |
|
- |
