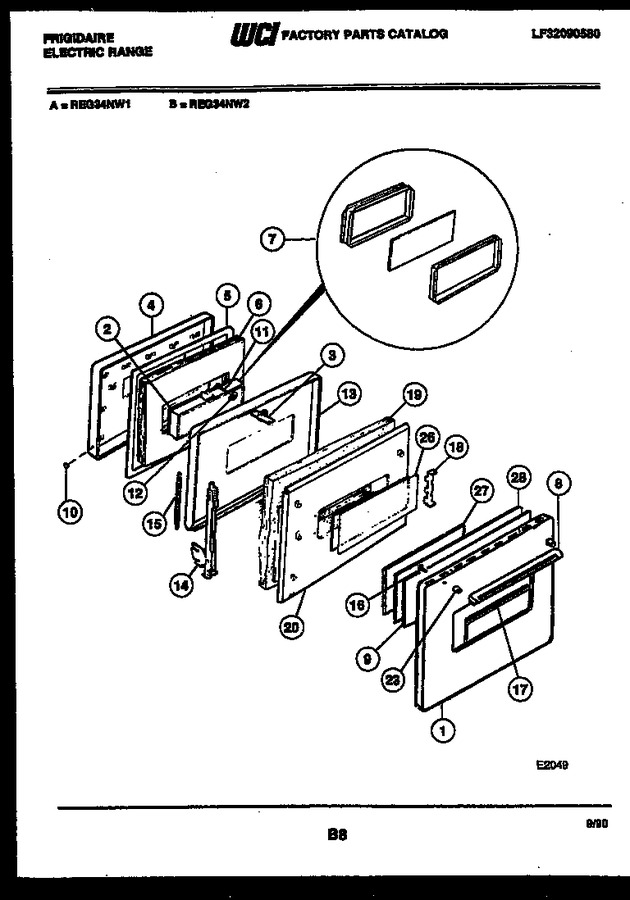

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303212550		Panel-door (white)		Appelez-nous	-
2	5303212544		Gasket-window		Appelez-nous	-
3	5301167830		Strike		Appelez-nous	-
4	5303212553		Baffle		Appelez-nous	-
5	3206078		Gasket		Appelez-nous	-
6	5303212545		Insulation-baffle		Appelez-nous	-
7	5303212548		Spacer-glass		Appelez-nous	-
8	5308012552		Handle		Appelez-nous	-
9	5301318805		Insulation-panel		Appelez-nous	-
10	3051807		Button, Plug (2)		Appelez-nous	-
11	5303051859		Screw 10 X 24 (2)		Appelez-nous	-
12	3051785		Washer-padded (2)		Appelez-nous	-
13	3017530		Liner, Door		Appelez-nous	-
14	5303207589		Hinge, Assy (2)		Appelez-nous	-
15	5308003186		Spring (2)		Appelez-nous	-
16	K5104201		Screw, Handle		Appelez-nous	-
17	5301313568		Moulding-j		Appelez-nous	-
18	5301313341		Retainer-glass (2)		Appelez-nous	-
19	5303212547		Insulation- Airwash		Appelez-nous	-
20	5303212549		Panel-airwash		Appelez-nous	-
23	5308003153		Spacer-handle, (2)		Appelez-nous	-
26	5303209512		Glass-inner				$ 150.41
27	5303212542		Glass-outer		Appelez-nous	-
28	5303212551		Panel-insulator Pad		Appelez-nous	-
*39093	5303212546		Insulation-airwash (2)		Appelez-nous	-
7A	5303209512		Glass-inner				$ 150.41
7B	5303212552		Collar-glass		Appelez-nous	-
