SELECT A DIAGRAM
02 - Control Panel
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Parts
06 - Drawer Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:

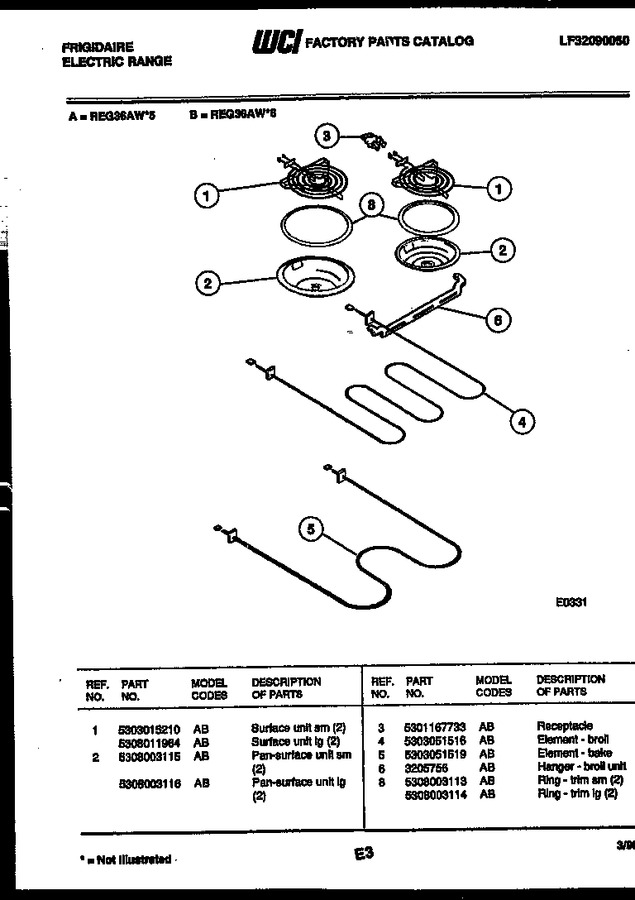

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308011964 | Surface Unit Lg (2) |
|
$ 209.08 | |||||
| 1 | 5303015210 | Surface Unit - Sm (2) |
|
- | |||||
| 2 | 5308003115 | Pan-surface Unit Sm (2) |
|
- | |||||
| 3 | 5303935058 | Receptacle (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 4 | 5303051516 | Element-broil |
|
$ 189.23 | |||||
| 5 | 5303051519 | Element-bake |
|
Immediately | $ 44.70 | ||||
| 6 | 3205756 | Hanger - Broil Unit |
|
- | |||||
| 8 | 5308003113 | Ring - Trim Sm (2) |
|
- | |||||
| 2A | 5308003116 | Pan-surface Unit Lg (2) |
|
- | |||||
| 8A | 5308003114 | Ring - Trim Lg (2) |
|
- |
