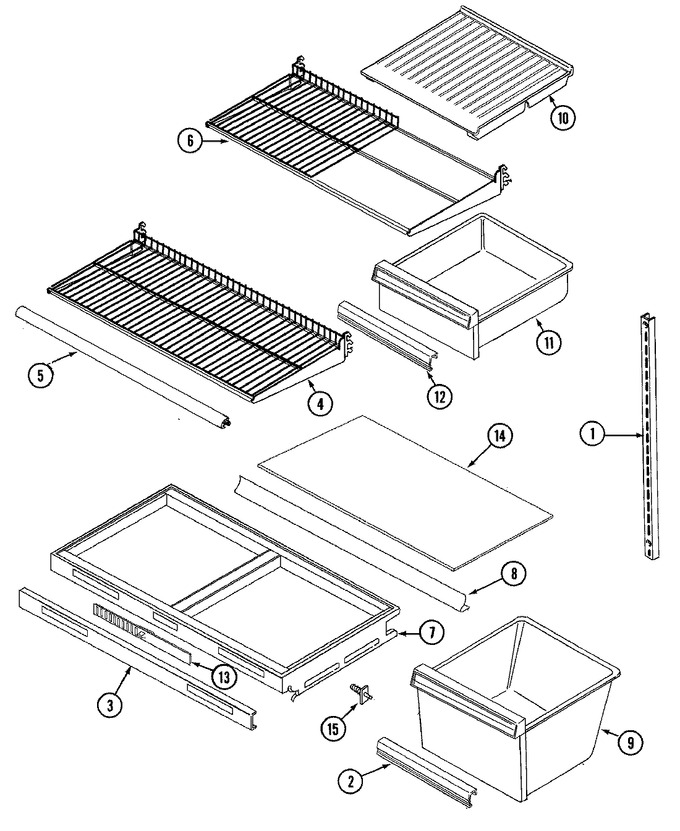

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-8		Rail, Shelf Support (rt)	10	Appelez-nous	-
1	400037-28		Screw	10	Appelez-nous	-
1	60096-7		Rail, Shelf Support (lt)	10	Appelez-nous	-
2	61001220		Trim, Crisper Pan	10	Appelez-nous	-
3	70282-1		Trim, Crisper Shelf (front)	10	Appelez-nous	-
4	61001223		Shelf, Full	10	Appelez-nous	-
5	61001224		Trim, Shelf	10	Appelez-nous	-
6	70105-13		Shelf, Wire	10	Appelez-nous	-
7	69057-2		Shelf, Crisper	10	Appelez-nous	-
8	68798-9		Trim, Crisper Shelf (rear)	10	Appelez-nous	-
9	68163-131		Pan, Crisper	10	Appelez-nous	-
10	60075-8		Cover, Meat Pan	10	Appelez-nous	-
11	66490-13		Pan, Meat	10	Appelez-nous	-
12	70315-25		Trim, Meat Pan	10	Appelez-nous	-
13	69542-1		Slide, Control	10	Appelez-nous	-
14	68743-17		Glass, Crisper Shelf	10	Appelez-nous	-
15	68836-1		Stud, Crisper Support	10	Appelez-nous	-
