SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System

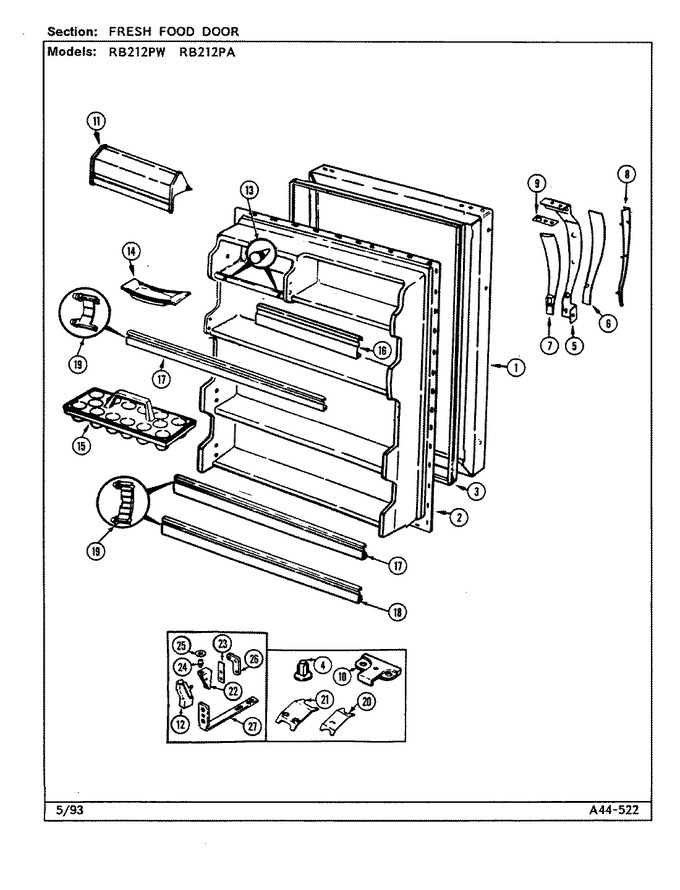

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72349-2-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	69454-1		Liner, F.f. Door		Appelez-nous	-
3	70025-6		Gasket, F.f. Door (wht)				$ 155.30
4	55782-6		Plug Button (almond)		Appelez-nous	-
5	65275-57		Screw		Appelez-nous	-
5	69300-2		Handle, Door		Appelez-nous	-
6	68959-2		Insert		Appelez-nous	-
7	60445-4		Insert, Handle (back)		Appelez-nous	-
8	65275-53		Screw		Appelez-nous	-
9	69301-1		Shim, Handle		Appelez-nous	-
10	69256-2		Stop, Door		Appelez-nous	-
10	65275-48		Screw		Appelez-nous	-
11	69058-23		Door, Dairy		Appelez-nous	-
12	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
13	28272-6		Bumper, Door		Appelez-nous	-
14	29936-2		Tray, Butter		Appelez-nous	-
15	60066-1		Tray, Egg		Appelez-nous	-
16	WP61003045		Trim, Door Shelf   (Replaces: 65151-361)				$ 129.55
16	WP61003045		Trim, Door Shelf   (Replaces: 68375-25)				$ 129.55
17	WP61003045		Trim, Door Shelf   (Replaces: 65151-336)				$ 129.55
18	WP61003045		Trim, Door Shelf   (Replaces: 65151-364)				$ 129.55
19	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
20	56209-3		Clip, Stop Screw		Appelez-nous	-
21	60123-2		Clip, Stop Screw		Appelez-nous	-
22	69516-2		Hinge, Lower (blk)		Appelez-nous	-
22	65275-51		Screw, Lower Hinge		Appelez-nous	-
23	69031-3		Shim		Appelez-nous	-
24	69845-1		Pin, Lower Hinge				$ 44.55
25	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
26	65275-59		Screw		Appelez-nous	-
26	64097-11		Organizer, Shelf		Appelez-nous	-
26	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
27	69511-1		Tapping Plate, Lower Hinge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
