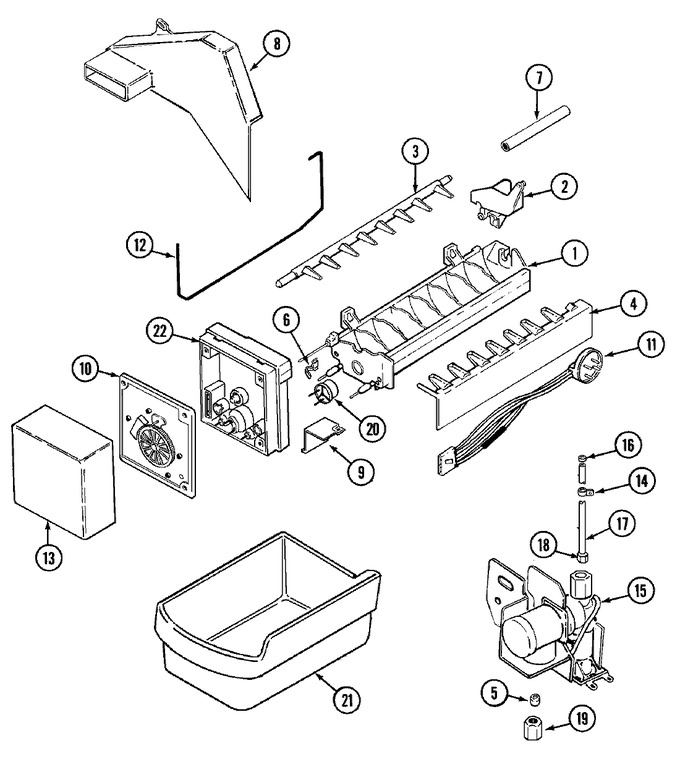

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7824706Q | Mold & Heater Assy. (Replaces: 95098-1) | 10 |
|
Immediately | $ 150.62 | |||
| 1 | 95099-1 | Grease, Silicone | 10 |
|
- | ||||
| 2 | WP628356 | Inlet, Water (Replaces: 95100-1) | 10 |
|
$ 46.07 | ||||
| 3 | WP627843 | Ejector, Ice (Replaces: 95101-1) | 10 |
|
$ 75.24 | ||||
| 4 | WP2182124 | Stripper, Ice (Replaces: 95102-1) | 10 |
|
$ 77.45 | ||||
| 5 | WP487627 | Sleeve, Brass (Replaces: 69431-1) | 10 |
|
$ 10.05 | ||||
| 6 | WP2315522 | Retainer, Thermostat (Replaces: 95104-1) | 10 |
|
$ 9.95 | ||||
| 7 | 67877-1 | Clip, Fill Tube | 10 |
|
$ 4.83 | ||||
| 7 | W10841140 | Tube, Fill (Replaces: 67666-8) | 10 |
|
Immediately | $ 24.92 | |||
| 8 | 400026-36 | Screw | 10 |
|
- | ||||
| 8 | 70198-2 | Duct, Air | 10 |
|
- | ||||
| 9 | WP489128 | Screw, Bracket (Replaces: 95108-1) | 10 |
|
$ 9.79 | ||||
| 9 | WP2256087 | Bracket, Module & Heater (Replaces: 95107-1) | 10 |
|
$ 83.70 | ||||
| 10 | D7824706Q | Module, Ice Maker (Replaces: 95109-1) | 10 |
|
Immediately | $ 150.62 | |||
| 10 | W11772394 | Screw (Replaces: 400021-1) | 10 |
|
Immediately | $ 10.94 | |||
| 11 | 70076-1 | Wire Harness, Ice Maker | 10 |
|
- | ||||
| 12 | 68112-1 | Arm, Sensor | 10 |
|
- | ||||
| 13 | 68328-2 | Cover, Ice Maker | 10 |
|
- | ||||
| 14 | WP489069 | Screw (Replaces: 65275-50) | 10 |
|
Immediately | $ 7.07 | |||
| 14 | W10833902 | Clamp, Tubing (Replaces: 53516-8) | 10 |
|
$ 9.89 | ||||
| 15 | 401018-1 | Screw | 10 |
|
- | ||||
| 15 | 4318047 | Valve, Water (Replaces: 61001019) | 10 |
|
Immediately | $ 66.68 | |||
| 16 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) | 10 |
|
$ 9.95 | ||||
| 17 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-7) | 10 |
|
$ 11.19 | ||||
| 18 | WP627018 | Nut, Compression (1/4``) (Replaces: 69583-1) | 10 |
|
$ 9.87 | ||||
| 19 | WP245183 | Nut, Brass (1/4``) (Replaces: 69432-1) | 10 |
|
$ 7.01 | ||||
| 20 | 95093-1 | Cement, Alumilastic (4 Oz.) | 10 |
|
$ 49.64 | ||||
| 20 | WP627985 | Thermostat (Replaces: 95092-1) | 10 |
|
Immediately | $ 98.26 | |||
| 21 | WP67001255 | Pan, Ice (Replaces: 68346-1) | 10 |
|
$ 182.77 | ||||
| 22 | WP2195914 | Support, Module Housing (Replaces: 95103-1) | 10 |
|
$ 94.11 | ||||
| 22 | WP681249 | Screw (Replaces: 95106-1) | 10 |
|
Immediately | $ 7.07 |
