01 - Drive Motor And Ram, Literature


02 - Frame


03 - Container


04 - Cabinet And Control


05 - Accessory

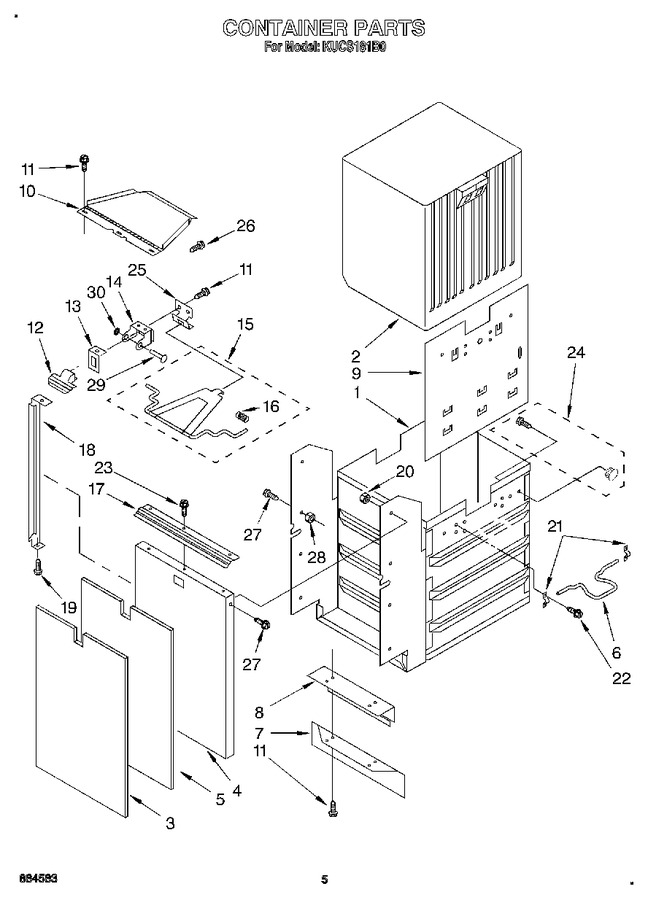

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9870981		Container (includes Items Nos.6, 21 & 22)		Appelez-nous	-
2	4161337		Liner, Container		Appelez-nous	-
3	9870982		Panel, Container (almond & Black)		Appelez-nous	-
4	4178051		Front, Container		Appelez-nous	-
5	4162880		Filler, Panel		Appelez-nous	-
6	4161186		Handle		Appelez-nous	-
7	4161232		Plate, Toe		Appelez-nous	-
8	4161152		Bracket, Toe Plate		Appelez-nous	-
9	4178056		Plate, Releif		Appelez-nous	-
10	4161527		Cover, Storage		Appelez-nous	-
11	4159387		Screw, 10 X 3/8				$ 5.59
12	4161515		Handle, Pull		Appelez-nous	-
13	4162881		Bezel, Handle		Appelez-nous	-
14	4178080		Bracket, Handle		Appelez-nous	-
15	9870260		Latch Assembly		Appelez-nous	-
16	4162739		Spring, Latch (right Side)		Appelez-nous	-
16	4162740		Spring, Latch (left Side)		Appelez-nous	-
17	4160981		Handle, Container		Appelez-nous	-
18	4161177		Trim, Front (bottom)		Appelez-nous	-
18	4161176		Trim, Front (left Side)		Appelez-nous	-
18	4161173		Trim, Front (right Side)		Appelez-nous	-
19	4159439		Screw, 10-32 X 5/16		Appelez-nous	-
20	WP776338		Nut, 10-32   (Replaces: 4159105)				$ 17.42
21	9871068		Clip, Handle (2)		Appelez-nous	-
22	9871065		Screw, 10-32 X 1/4		Appelez-nous	-
23	4178087		Screw, No.10 X 3/8 (3)		Appelez-nous	-
24	W11705833		Retainer, Bag (4)   (Replaces: 4147703)		Appelez-nous	-
25	4178081		Hinge, Handle		Appelez-nous	-
26	4159414		Screw, 10-24 X 3/8		Appelez-nous	-
27	342043		Screw, 10-32 X 5/16		Appelez-nous	-
28	WP776338		Nut, Lock   (Replaces: 4159105)				$ 17.42
29	4178082		Pin		Appelez-nous	-
30	4161473		Nut, Push		Appelez-nous	-
