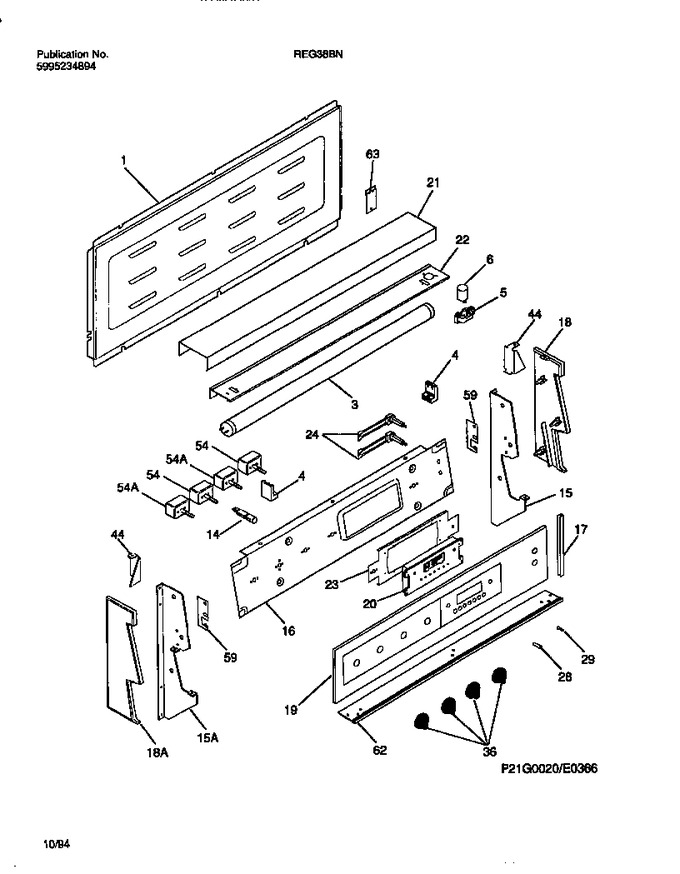

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303017470		Shield-backguard, Rear Wall		Appelez-nous	-
3	5308012712		Lamp-fluorescent, Backguard		Appelez-nous	-
4	08012748		Receptable-lamp, Rh/lh		Appelez-nous	-
5	5303293173		Receptable Starter				$ 18.59
6	3206218		Starter-lamp				$ 54.08
14	08017086		Light/lamp, Indicator, 250 V		Appelez-nous	-
15	08015966		Support-backguard, Rh		Appelez-nous	-
16	3017796		Plate, Instument Mtg		Appelez-nous	-
17	08017099		Trim-control Panel		Appelez-nous	-
18	08015974		End Cap, Rh		Appelez-nous	-
19	5303211909		Panel-control, Glass		Appelez-nous	-
20	5303270370		Clock/timer, Electronic		Appelez-nous	-
21	5303295907		Trim-backguard, Top		Appelez-nous	-
22	08017089		Support-receptable		Appelez-nous	-
23	3206118		Bracket-clock Mtg		Appelez-nous	-
24	5303279413		Switch/oven Light, Push Button, Black, Fluor-oven		Appelez-nous	-
28	3202376		Push Button, Clock/timer/eoc, Olive Grey, (8)		Appelez-nous	-
29	3202378		Knob-eoc Control, Olive Grey				$ 49.82
36	5303271673		Knob-control		Appelez-nous	-
44	3017797		Bracket-backguard, (2)		Appelez-nous	-
54	5303015702		Switch-6`` Element		Appelez-nous	-
59	5308012538		Bracket-hinge Mtg, Bkgd		Appelez-nous	-
62	08015987		Base Plate-control Panel		Appelez-nous	-
63	08017090		Hinge-light Shield, (2)		Appelez-nous	-
15A	5308015967		Support-backguard, Lh		Appelez-nous	-
18A	08015975		End Cap, Lh		Appelez-nous	-
24A	08012572		Nut-knurled, R269205		Appelez-nous	-
54A	5308017080		Switch-8`` Element		Appelez-nous	-
