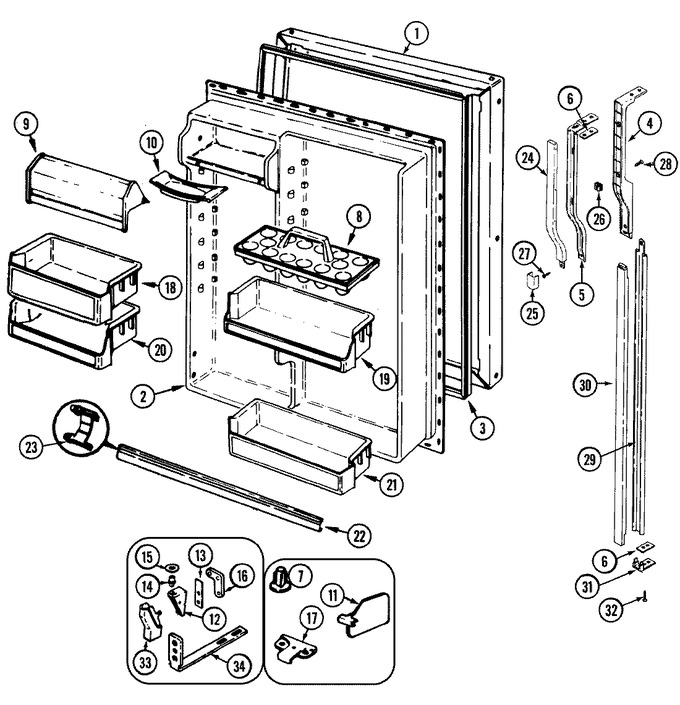

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72342-1-AM | Panel, F.f. Door (alm) | 10 |
|
- | ||||
| 2 | 65275-5 | Screw | 10 |
|
- | ||||
| 2 | 69456-1 | Liner | 10 |
|
- | ||||
| 3 | 70025-6 | Gasket, F.f. Door (wht) | 10 |
|
$ 155.30 | ||||
| 4 | 70051-2 | Handle, F.f. Door | 10 |
|
- | ||||
| 5 | 70052-1 | Frame, Handle | 10 |
|
- | ||||
| 6 | 67934-1 | Shim, Handle | 10 |
|
- | ||||
| 7 | 55782-6 | Plug Button (almond) | 10 |
|
- | ||||
| 8 | 60066-1 | Tray, Egg | 10 |
|
- | ||||
| 9 | 66184-365 | Door, Dairy | 10 |
|
- | ||||
| 10 | 29936-2 | Tray, Butter | 10 |
|
- | ||||
| 11 | 69759-2 | Organizer | 10 |
|
- | ||||
| 12 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 13 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 14 | 69845-1 | Pin, Lower Hinge | 10 |
|
$ 44.55 | ||||
| 15 | 69511-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 15 | 65275-59 | Screw | 10 |
|
- | ||||
| 15 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | 10 |
|
Immediately | $ 45.86 | |||
| 16 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 17 | 69256-2 | Stop, Door | 10 |
|
- | ||||
| 17 | 65275-48 | Screw | 10 |
|
- | ||||
| 18 | 69872-7 | Shelf, Pick-off | 10 |
|
- | ||||
| 19 | 69872-8 | Shelf, Pick-off | 10 |
|
- | ||||
| 20 | 69872-9 | Shelf, Pick-off | 10 |
|
- | ||||
| 21 | 70112-1 | Retainer, Bottle | 10 |
|
- | ||||
| 21 | 69872-21 | Shelf, Pick-off | 10 |
|
- | ||||
| 22 | WP70111-108 | Trim, Shelf (24 7/8``) (Replaces: 70111-131) | 10 |
|
Immediately | $ 104.35 | |||
| 23 | 70197-1 | Retainer, Shelf Trim | 10 |
|
Immediately | $ 14.18 | |||
| 24 | 70053-17 | Insert, Handle (alm)----na | 10 |
|
- | ||||
| 25 | 61001128 | End Cap, Handle (alm) | 10 |
|
- | ||||
| 26 | 69743-1 | Grommet | 10 |
|
- | ||||
| 27 | W10856122 | Screw (Replaces: 65275-80) | 10 |
|
$ 6.98 | ||||
| 28 | 415033-1 | Screw | 10 |
|
- | ||||
| 29 | 70055-2 | Trim, Handle Ext. | 10 |
|
- | ||||
| 30 | 70054-5 | Insert, Ext. (alm) | 10 |
|
- | ||||
| 31 | 70056-1 | End Cap | 10 |
|
- | ||||
| 32 | 65275-22 | Screw | 10 |
|
- | ||||
| 33 | 68978-3 | Cover, Lower Hinge (alm) | 10 |
|
- | ||||
| 34 | 69511-1 | Tapping Plate, Lower Hinge | 10 |
|
- |
