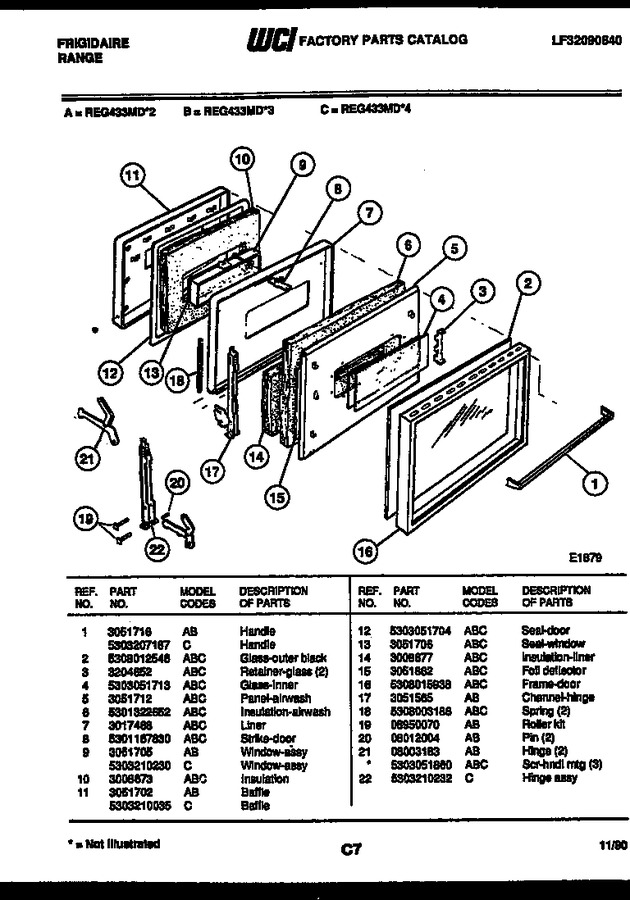

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207187 | Handle |
|
- | |||||
| 2 | 5308012546 | Glass, Outer, Black |
|
- | |||||
| 3 | 3204652 | Retainer, Glass (2) |
|
- | |||||
| 4 | 5303051713 | Glass, Inner |
|
- | |||||
| 5 | 3051712 | Panel, Airwash |
|
- | |||||
| 6 | 5301322652 | Insulation, Airwash |
|
- | |||||
| 7 | 3017468 | Liner |
|
- | |||||
| 8 | 5301167830 | Strike-door |
|
- | |||||
| 9 | 5303210230 | Window-assy |
|
- | |||||
| 10 | 3008673 | Insulation |
|
- | |||||
| 11 | 5303210035 | Baffle |
|
- | |||||
| 12 | 5303051704 | Seal, Door |
|
$ 388.08 | |||||
| 13 | 3051706 | Seal Window |
|
- | |||||
| 14 | 3008677 | Insulation, Liner |
|
- | |||||
| 15 | 3051862 | Foil Deflector |
|
- | |||||
| 16 | 5308015938 | Frame, Door |
|
- | |||||
| 18 | 5308003186 | Spring (2) |
|
- | |||||
| 22 | 5303210232 | Hinge Assy |
|
- | |||||
| 21A | 5303051860 | Scr-hndl Mtg (3) (non-illustrated) |
|
- |
