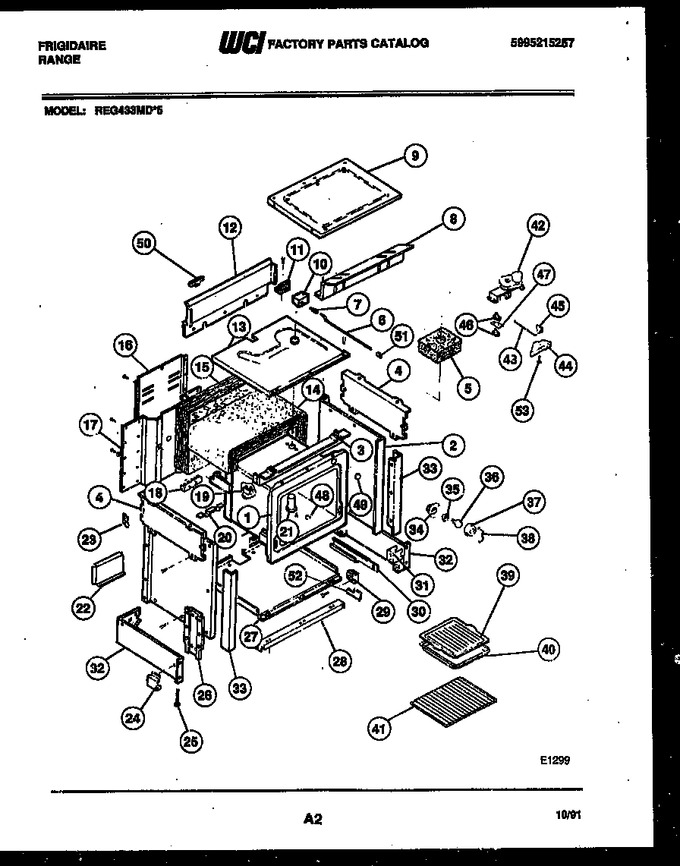

02 - Body Parts
03 - Control Panel
04 - Cooktop And Broiler Parts
05 - Door Parts
06 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204607 | Liner, Oven |
|
- | |||||
| 2 | 08012226 | Shield-insulation (2) |
|
- | |||||
| 3 | 08008686 | Bracket, Cooktop |
|
- | |||||
| 4 | 5308015935 | Panel, Side (2) |
|
- | |||||
| 5 | 3051523 | Insulation-oven Vent |
|
- | |||||
| 6 | 3051645 | Rod-switch |
|
- | |||||
| 7 | 08007444 | End-push Rod |
|
- | |||||
| 8 | 5305113502 | Shield, Wire |
|
- | |||||
| 9 | 5303051553 | Panel, Subtop |
|
- | |||||
| 10 | W10169313 | Switch, Door (Replaces: 5308003081) |
|
Immediately | $ 29.18 | ||||
| 11 | 3051643 | Bracket-door Sw |
|
- | |||||
| 12 | 5308008689 | Back-upper |
|
- | |||||
| 13 | 3051782 | Retainer-insulation |
|
- | |||||
| 14 | 08013680 | Insulation, Wrap |
|
- | |||||
| 15 | 5303051630 | Insulation-back |
|
- | |||||
| 16 | 3204650 | Panel - Wire Cover |
|
- | |||||
| 17 | 5303280344 | Back |
|
- | |||||
| 18 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 19 | 3051552 | Bracket - Thermo Bulb |
|
- | |||||
| 20 | 5301145190 | Bracket |
|
- | |||||
| 21 | 3051773 | Tube-oven Vent |
|
- | |||||
| 22 | 3051634 | Channel, Air |
|
- | |||||
| 23 | 3051827 | Plate-filler |
|
- | |||||
| 24 | 08012736 | Shield-toe (2) |
|
- | |||||
| 25 | 5303205540 | Screw-leveling (4) |
|
- | |||||
| 26 | 5305080001 | Support-front (2) |
|
- | |||||
| 27 | 3205124 | Shield-bottom |
|
- | |||||
| 28 | 08012722 | Channel, Oven |
|
- | |||||
| 29 | 3051654 | Glide-front |
|
- | |||||
| 30 | 3204818 | Rail - Drwr Rh |
|
- | |||||
| 31 | 3051653 | Spacer-drwr Glide (2) |
|
- | |||||
| 32 | 5303280349 | Panel-side Rh |
|
- | |||||
| 33 | 3051777 | Trim, Oven Front (2) |
|
- | |||||
| 34 | 3051511 | Housing-light |
|
$ 60.22 | |||||
| 35 | 316116400 | Receptacle-light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 36 | 40A15 | Bulb-light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 37 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 38 | 5303205904 | Retainer-lens |
|
$ 7.67 | |||||
| 39 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 40 | 5303013568 | Pan-broiler |
|
- | |||||
| 41 | 5303131973 | Rack |
|
- | |||||
| 42 | 5308015743 | Motor-lock |
|
$ 211.92 | |||||
| 43 | 3051649 | Bar-push |
|
- | |||||
| 44 | 3051647 | Housing-door Latch |
|
- | |||||
| 45 | 3051648 | Latch-door |
|
- | |||||
| 46 | 5301167190 | Sw-door Latch (1) |
|
$ 62.40 | |||||
| 46 | 5303051740 | Sw-door Latch (1) |
|
- | |||||
| 47 | 08003090 | Insulator-sw |
|
- | |||||
| 48 | 3204825 | Button-plug |
|
- | |||||
| 49 | 3204817 | Button-plug |
|
- | |||||
| 50 | 3051800 | Brkt, Hng Support |
|
- | |||||
| 51 | 3051251 | Cover, Rod |
|
- | |||||
| 52 | 3051810 | Retainer-door (2) |
|
- | |||||
| 53 | 08012004 | Axle-latch |
|
- | |||||
| *56022 | 3931015 | Anti-tip Kit |
|
- | |||||
| *56022 | 191S021P35 | Wiring Diagram (not For Purchase) |
|
- | |||||
| 30A | 3204819 | Rail - Drwr Lh |
|
- | |||||
| 32A | 5303280351 | Panel-side Lh |
|
- | |||||
| 41A | 08014219 | Rack-offset |
|
- | |||||
| 51A | 3051788 | Insulation-liner (non-illustrated) |
|
- |
