Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DA97-02782A Assy Hinge Upp;w2-05,t3.2 Special Order $ 43.20

2 DA97-02783A Assy Hinge Mid;w2-05,t04 Special Order $ 50.90

3 DA97-02904A Assy Hinge Mid-l Special Order $ 56.08

4 DA61-02161A Hinge-upp Special Order $ 31.07

4 DA63-02527A Shim-hinge Upp Appelez-nous -
5 DA61-02162A Hinge Low Special Order $ 11.12

6 DA61-02160A Hinge-mid In-Stock Immediately $ 47.11

6 DA63-50139C Shim Hinge-mid Special Order $ 2.50

8 DA63-02521A Cover Hinge-upp R Special Order $ 8.89

9 DA63-02530D Cover Hinge-low Appelez-nous -
10 DA67-00178A Cap Door-s/w Special Order $ 1.66

NI DA63-02520A Cover Hinge-upp L Special Order $ 12.60


    View Diagram in Separate Window     Print Icon   Print Part List

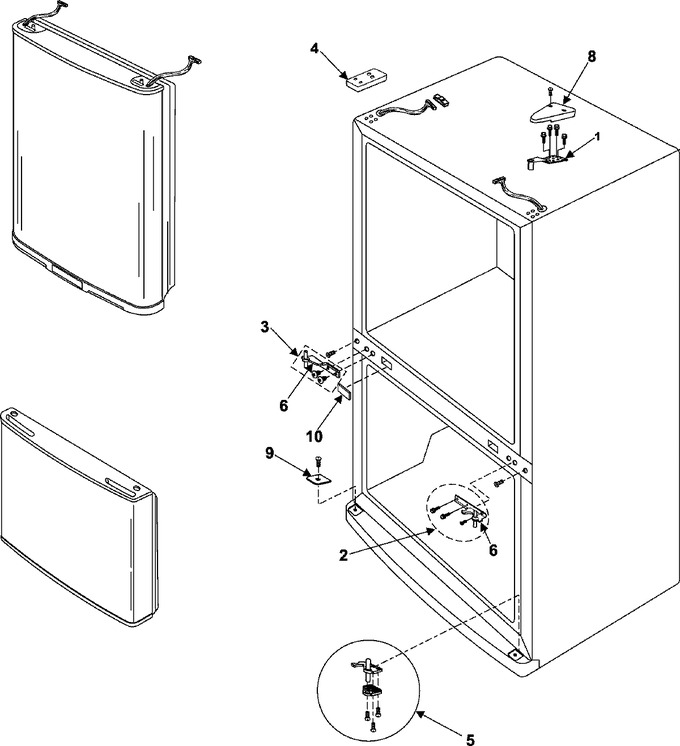

Diagram for RB215LABP
