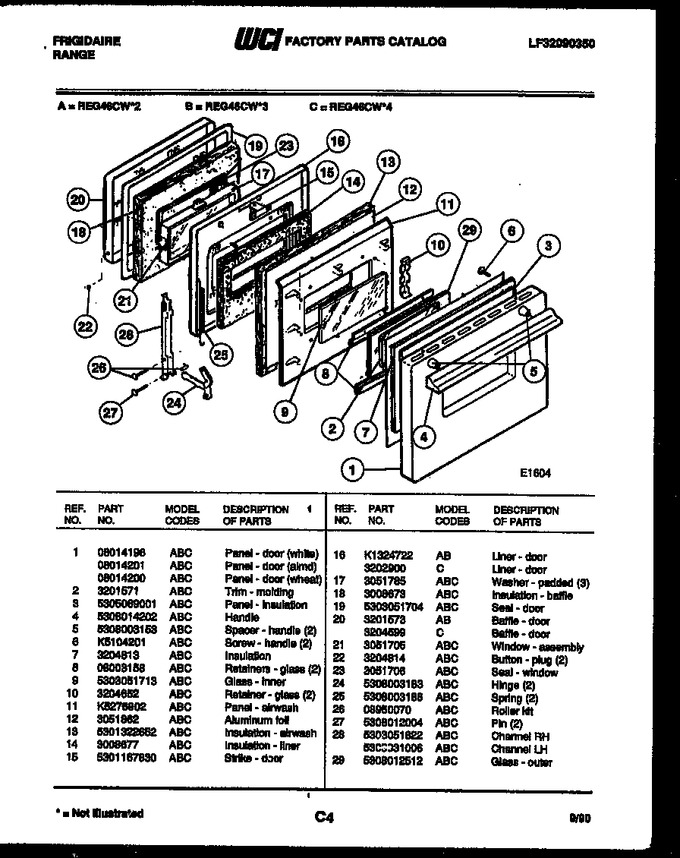

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08014200		Panel, Door, Wheat		Appelez-nous	-
2	3201571		Trim, Molding		Appelez-nous	-
3	5305069001		Panel, Insulation		Appelez-nous	-
4	5308014202		Handle		Appelez-nous	-
5	5308003153		Spacer-handle, (2)		Appelez-nous	-
6	K5104201		Screw, Handle (2)		Appelez-nous	-
7	3204813		Insulation		Appelez-nous	-
8	08003158		Retainers - Glass (2)		Appelez-nous	-
9	5303051713		Glass, Inner		Appelez-nous	-
10	3204652		Retainer, Glass (2)		Appelez-nous	-
11	K5276902		Panel, Airwash		Appelez-nous	-
12	3051862		Aluminum Foil		Appelez-nous	-
13	5301322652		Insulation, Airwash		Appelez-nous	-
14	3008677		Insulation, Liner		Appelez-nous	-
15	5301167830		Strike-door		Appelez-nous	-
16	K1324722		Liner, Door		Appelez-nous	-
17	3051785		Washer, Padded (3)		Appelez-nous	-
18	3008673		Insulation, Baffle		Appelez-nous	-
19	5303051704		Seal, Door				$ 388.08
20	3201573		Baffle, Door		Appelez-nous	-
21	3051705		Window Assembly		Appelez-nous	-
22	3204814		Button, Plug (2)		Appelez-nous	-
23	3051706		Seal Window		Appelez-nous	-
24	5308003183		Hinge (2)				$ 90.35
25	5308003186		Spring (2)		Appelez-nous	-
26	08950070		Roller Kit		Appelez-nous	-
27	5308012004		Pin (2)				$ 8.29
28	5303051822		Channel, Rh		Appelez-nous	-
29	5308012512		Glass, Outer		Appelez-nous	-
28A	5303931006		Channel, Lh		Appelez-nous	-
