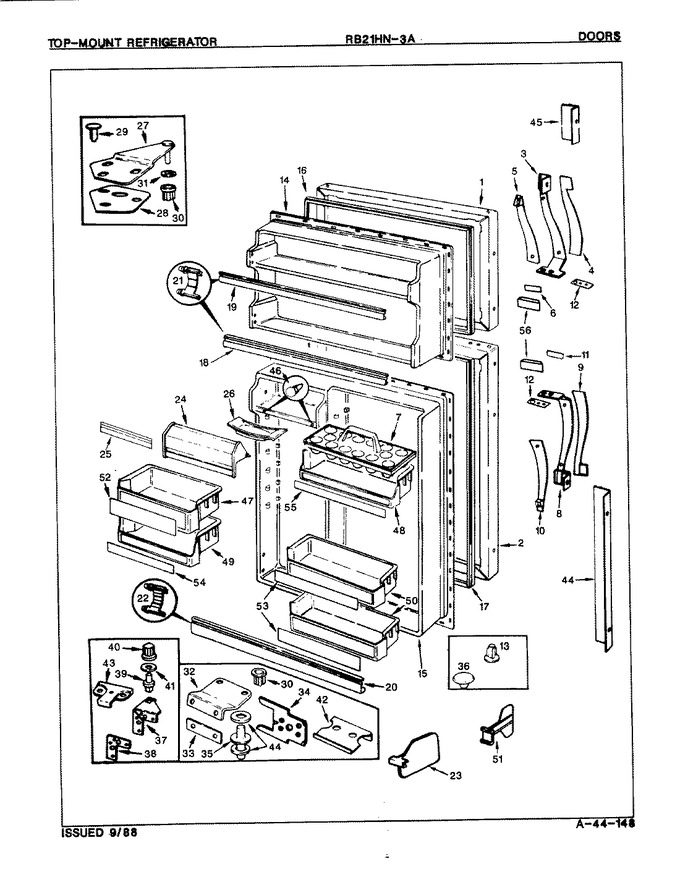

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60033-16-WW		Outer Panel		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	60032-54-WW		Outer Panel		Appelez-nous	-
3	60491-1		Door Handle		Appelez-nous	-
4	68019-1		Insert		Appelez-nous	-
5	60490-1		Insert		Appelez-nous	-
6	60533-11		Insert		Appelez-nous	-
7	60066-1		Tray, Egg		Appelez-nous	-
8	9986-122		Screw		Appelez-nous	-
8	60491-2		Door Handle		Appelez-nous	-
9	60123-2		Clip, Stop Screw		Appelez-nous	-
9	9986-112		Screw		Appelez-nous	-
9	56209-3		Clip, Stop Screw		Appelez-nous	-
9	68091-1		Insert		Appelez-nous	-
10	60490-2		Insert		Appelez-nous	-
11	60533-12		Insert		Appelez-nous	-
12	60488-2		Shim		Appelez-nous	-
13	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
14	65928-5		Liner, Frz. Door		Appelez-nous	-
15	65275-5		Screw		Appelez-nous	-
15	65932-4		Liner, Door		Appelez-nous	-
16	66199-5		Gasket, Frz. Door		Appelez-nous	-
17	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
18	WP61003045		Trim, Door Shelf   (Replaces: 65151-185)				$ 129.55
19	WP61003045		Trim, Door Shelf   (Replaces: 65151-184)				$ 129.55
20	60080-31		Trim		Appelez-nous	-
21	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
22	65246-1		Retainer				$ 5.04
23	64097-9		Organizer, Shelf		Appelez-nous	-
24	60406-12		Door, Dairy		Appelez-nous	-
25	68128-6		Insert		Appelez-nous	-
26	29936-2		Tray, Butter		Appelez-nous	-
27	53709-18		Door Hinge, Upper		Appelez-nous	-
27	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
28	65031-1		Shim, Upper Hinge		Appelez-nous	-
29	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
30	66036-1		Bushing,top/center Hinge		Appelez-nous	-
31	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
31	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
32	60031-2		Door Hinge, Center		Appelez-nous	-
33	60034-1		Spacer, Center Hinge		Appelez-nous	-
34	60622-1		Tapping Plate		Appelez-nous	-
34	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
35	60035-4		Pin, Center Hinge		Appelez-nous	-
36	56186-10		Plug Button, (white)		Appelez-nous	-
37	60630-8		Door Hinge, Lower		Appelez-nous	-
37	403062-5		Screw		Appelez-nous	-
38	60626-1		Shim, Lower Hinge		Appelez-nous	-
39	53672-1		Pin, Lower Hinge		Appelez-nous	-
40	66034-1		Bushing, Lower Hinge				$ 19.76
41	54233-2		Washer		Appelez-nous	-
42	60030-1		Door Stop		Appelez-nous	-
43	60419-1		Door Stop		Appelez-nous	-
43	9986-108		Screw		Appelez-nous	-
44	60554-1		Handle Ext		Appelez-nous	-
45	495039-900		Plug		Appelez-nous	-
45	66645-4		Organizer, Pick-off Shelf		Appelez-nous	-
46	28272-6		Bumper, Door		Appelez-nous	-
47	60037-35		Door Shelf		Appelez-nous	-
48	60037-36		Shelf, Pick-off		Appelez-nous	-
49	60037-37		Shelf, Pick-off		Appelez-nous	-
50	60037-38		Shelf, Pick-off		Appelez-nous	-
51	66645-4		Organizer, Pick-off Shelf		Appelez-nous	-
52	68130-7		Insert		Appelez-nous	-
53	68130-8		Insert		Appelez-nous	-
54	68130-9		Insert		Appelez-nous	-
55	68130-10		Insert		Appelez-nous	-
56	401005-12		Screw		Appelez-nous	-
56	60487-1		Bezel		Appelez-nous	-
