SELECT A DIAGRAM

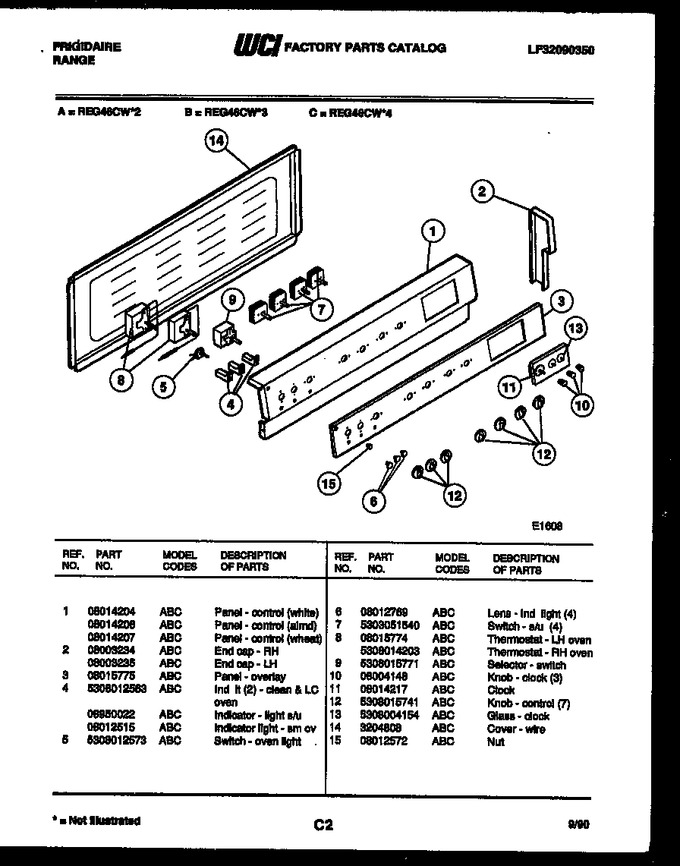

02 - Control Panel


03 - Door And Drawer Parts


04 - Door Parts


05 - Cooktop And Broiler Parts


06 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08014204		Panel - Control (white)		Appelez-nous	-
2	08003234		End Cap, Rh		Appelez-nous	-
3	08015775		Panel, Overlay		Appelez-nous	-
4	5308012563		Ind It (2) - Clean & Lc Oven		Appelez-nous	-
5	5308012573		Switch, Oven Light		Appelez-nous	-
6	08012769		Lens - Ind Light (4)		Appelez-nous	-
7	5303051540		Switch - S/u (4)		Appelez-nous	-
8	08015774		Thermostat, Lh Oven		Appelez-nous	-
9	5308015771		Selector Switch		Appelez-nous	-
10	08004148		Knob, Clock (3)		Appelez-nous	-
11	08014217		Clock		Appelez-nous	-
12	5308015741		Knob, Control (7)				$ 91.02
13	5308004154		Glass, Clock		Appelez-nous	-
14	3204808		Cover Wire		Appelez-nous	-
15	08012572		Nut		Appelez-nous	-
2A	08003235		End Cap, Lh		Appelez-nous	-
4A	08950022		Indicator - Light S/u		Appelez-nous	-
4B	08012515		Indicator Light - Sm Ov		Appelez-nous	-
8A	5308014203		Thermostat, Rh Oven		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
