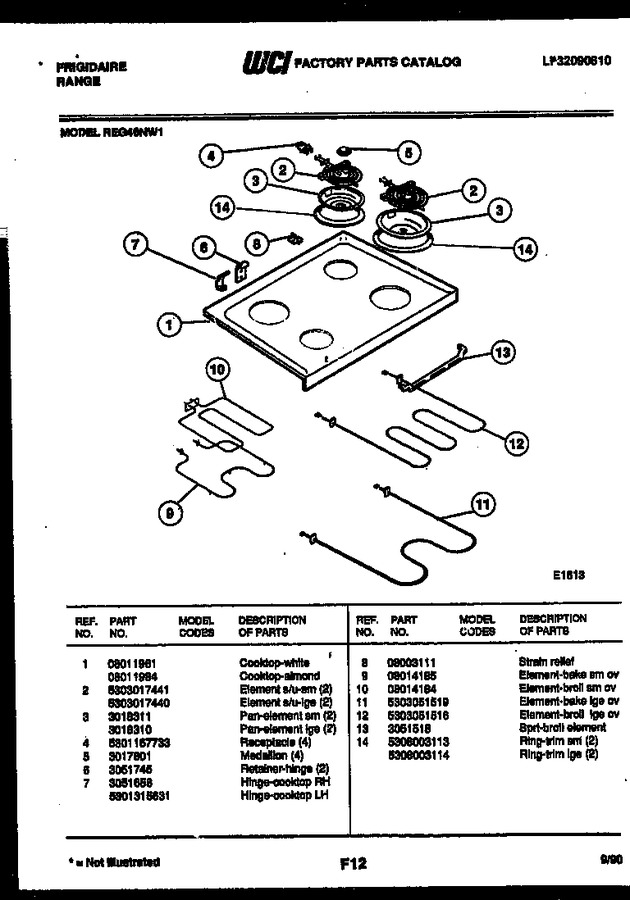

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08011984 | Cooktop (almond) |
|
- | |||||
| 2 | 5303017441 | Element - S/u Sm (2) |
|
- | |||||
| 2 | 5303017440 | Element - S/u Lge (2) |
|
- | |||||
| 3 | 3018311 | Pan-element Sm (2) |
|
- | |||||
| 3 | 3018310 | Pan-element Lge (2) |
|
- | |||||
| 4 | 5303935058 | Receptacle (4) (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 5 | 3017801 | Medallion (4) |
|
- | |||||
| 6 | 3051745 | Retainer Hinge (2) |
|
- | |||||
| 7 | 3051658 | Hinge Cooktop Rh |
|
- | |||||
| 8 | 08003111 | Strain Relief |
|
- | |||||
| 9 | 08014185 | Element-bake Sm Ov |
|
- | |||||
| 10 | 08014184 | Element-broil Sm Ov |
|
- | |||||
| 11 | 5303051519 | Element-bake Lge Ov |
|
Immediately | $ 44.70 | ||||
| 12 | 5303051516 | Element-broil Lge Ov |
|
$ 189.23 | |||||
| 13 | 3051518 | Sprt - Broil Element |
|
- | |||||
| 14 | 5308003113 | Ring - Trim Sm (2) |
|
- | |||||
| 14A | 5308003114 | Ring - Trim Lge (2) |
|
- | |||||
| 7A | 5301315631 | Hinge-cooktop Lh |
|
- |
