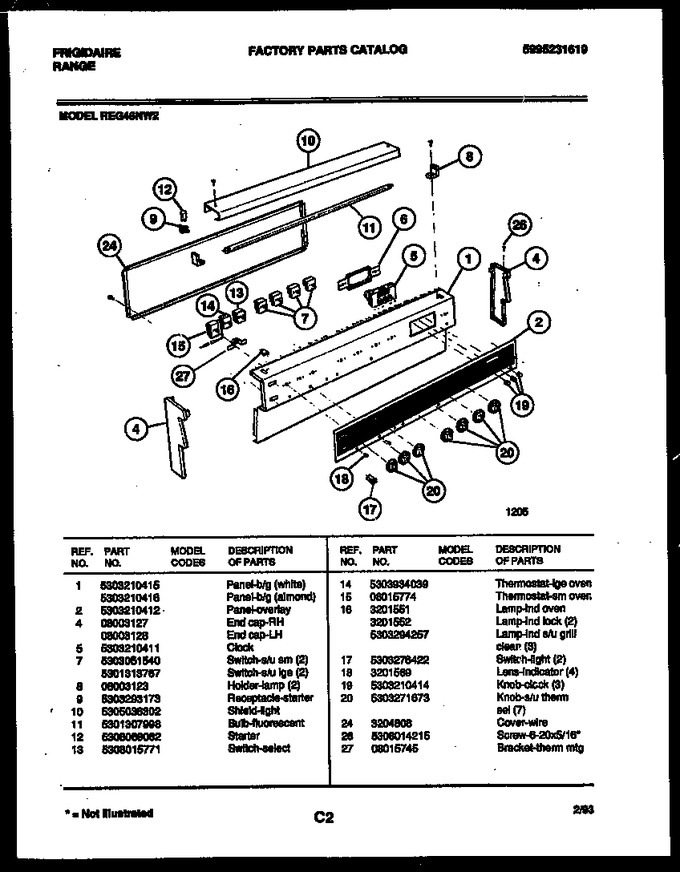

02 - Control Panel
03 - Door And Drawer Parts
04 - Door Parts
05 - Cooktop And Broiler Parts
06 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210416 | Panel-b/g (almond) |
|
- | |||||
| 2 | 5303210412 | Panel-overlay |
|
- | |||||
| 4 | 08003127 | End Cap-rh |
|
- | |||||
| 5 | 5303210411 | Clock |
|
- | |||||
| 7 | 5303051540 | Switch, S/u Sm (2) |
|
- | |||||
| 8 | 08003123 | Holder-lamp (2) |
|
- | |||||
| 9 | 5303293173 | Receptacle-starter |
|
$ 18.59 | |||||
| 10 | 5305036302 | Shield-light |
|
- | |||||
| 11 | 5301307998 | Bulb-fluorescent |
|
- | |||||
| 12 | 5308068062 | Starter |
|
$ 30.46 | |||||
| 13 | 5308015771 | Switch, Select |
|
- | |||||
| 14 | 5303934039 | Thermostat-lge Oven |
|
- | |||||
| 15 | 08015774 | Thermostat-sm Oven |
|
- | |||||
| 16 | 3201551 | Lamp-ind Oven |
|
- | |||||
| 17 | 5303276422 | Switch-light (2) |
|
- | |||||
| 18 | 3201569 | Lens-indicator (4) |
|
- | |||||
| 19 | 5303210414 | Knob - Clock (3) |
|
- | |||||
| 20 | 5303271673 | Knob-s/u Therm Sel (7) |
|
- | |||||
| 24 | 3204808 | Cover Wire |
|
- | |||||
| 26 | 5308014215 | Screw-6-20 X 5/16`` |
|
$ 2.28 | |||||
| 27 | 08015745 | Bracket-therm Mtg |
|
- | |||||
| 16A | 3201552 | Lamp-ind Lock (2) |
|
- | |||||
| 16B | 5303294257 | Lamp-ind S/u Grill Clean (3) |
|
- | |||||
| 4A | 08003128 | End Cap-lh |
|
- | |||||
| 7A | 5301313767 | Switch-s/u Lge (2) |
|
- |
