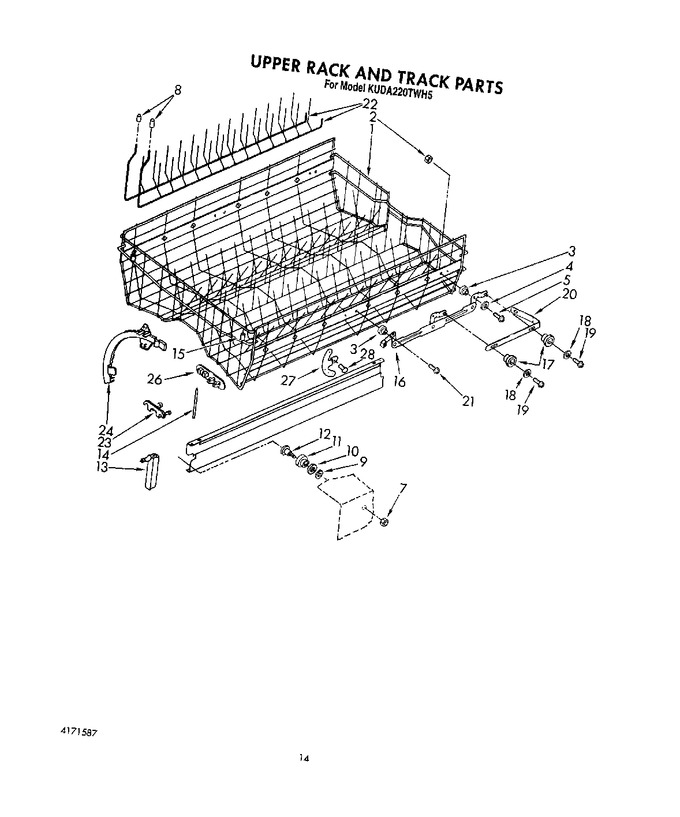

11 - Upper Rack And Track


12 - Lower Rack


13 - Door And Latch


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4171546		Xcomplete Upper Rack Assembly (includes Lower Sprayarm Parts)		Appelez-nous	-
1	4171557		Upper Rack Assembly (includes Item 2, 3, 4, 5 & 15)		Appelez-nous	-
2	4161226		Nut, Roller		Appelez-nous	-
3	4171288		Bearing & Spacer, Rack Roller		Appelez-nous	-
4	4162452		Washer		Appelez-nous	-
5	4159428		Screw, 10-16 X 1		Appelez-nous	-
6	4162442		Track, Rack		Appelez-nous	-
7	718829		Nut, Lock		Appelez-nous	-
8	9740023		Tip		Appelez-nous	-
9	9741062		Washer		Appelez-nous	-
10	718817		Washer, Cup		Appelez-nous	-
11	9740963		Roller, Rack Track		Appelez-nous	-
12	9740964		Screw. Track Roller		Appelez-nous	-
13	4171547		Bumper, Rack Track		Appelez-nous	-
14	4160423		Stud, Bumper Retaining		Appelez-nous	-
15	4162048		Bumper, Upper Rack		Appelez-nous	-
16	4171289		Track, Adjustable (l.h.)		Appelez-nous	-
16	4171290		Track, Adjustable (r.h.)		Appelez-nous	-
17	4161607		Roller, Upper Rack Track				$ 8.60
18	4159593		Washer		Appelez-nous	-
19	4159283		Screw, 8-32 X 1/4 (4)		Appelez-nous	-
20	4171293		Lift, Receiver (r.h.)		Appelez-nous	-
20	4171294		Lift, Receiver (l.h.)		Appelez-nous	-
21	4159428		Screw, 10 X 5/8		Appelez-nous	-
22	4171548		Partition		Appelez-nous	-
23	4160480		Clip, Partition (6)				$ 6.27
24	4171549		Quadrant, Divider (r.h.)		Appelez-nous	-
24	4171550		Quadrant, Divider (l.h.)		Appelez-nous	-
26	4171551		Clip, Wash Arm Guard		Appelez-nous	-
27	4171291		Rackstop (r.h.)		Appelez-nous	-
27	4171292		Rackstop (l.h.)		Appelez-nous	-
28	4171491		Rivet		Appelez-nous	-
