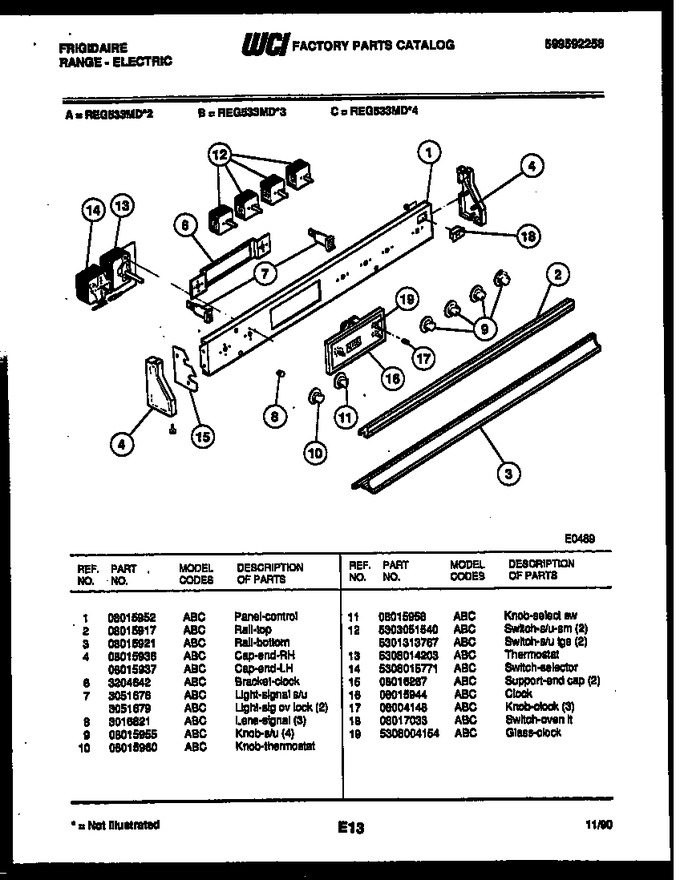

02 - Control Panel
03 - Cooktop And Broiler Parts
04 - Door Parts
05 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08015952 | Panel-control |
|
- | |||||
| 2 | 08015917 | Rail, Top |
|
- | |||||
| 3 | 08015921 | Rail, Bottom |
|
- | |||||
| 4 | 08015936 | Cap, End Rh |
|
- | |||||
| 6 | 3204642 | Bracket-clock |
|
- | |||||
| 7 | 3051676 | Light-signal S/u |
|
- | |||||
| 8 | 3016821 | Lens-signal (3) |
|
- | |||||
| 9 | 08015955 | Knob, S/u (4) |
|
- | |||||
| 10 | 08015960 | Knob-thermostat |
|
- | |||||
| 11 | 08015958 | Knob-select Sw. |
|
- | |||||
| 12 | 5303051540 | Switch, S/u Sm (2) |
|
- | |||||
| 13 | 5308014203 | Thermostat |
|
- | |||||
| 14 | 5308015771 | Switch-selector |
|
- | |||||
| 15 | 08016267 | Support-end Cap (2) |
|
- | |||||
| 16 | 08015944 | Clock |
|
- | |||||
| 17 | 08004148 | Knob, Clock (3) |
|
- | |||||
| 18 | 08017033 | Switch-oven Lt |
|
- | |||||
| 19 | 5308004154 | Glass, Clock |
|
- | |||||
| 12A | 5301313767 | Switch-s/u Lge (2) |
|
- | |||||
| 4A | 08015937 | Cap, End Lh |
|
- | |||||
| 7A | 3051679 | Light-sig Ov Lock (2) |
|
- |
