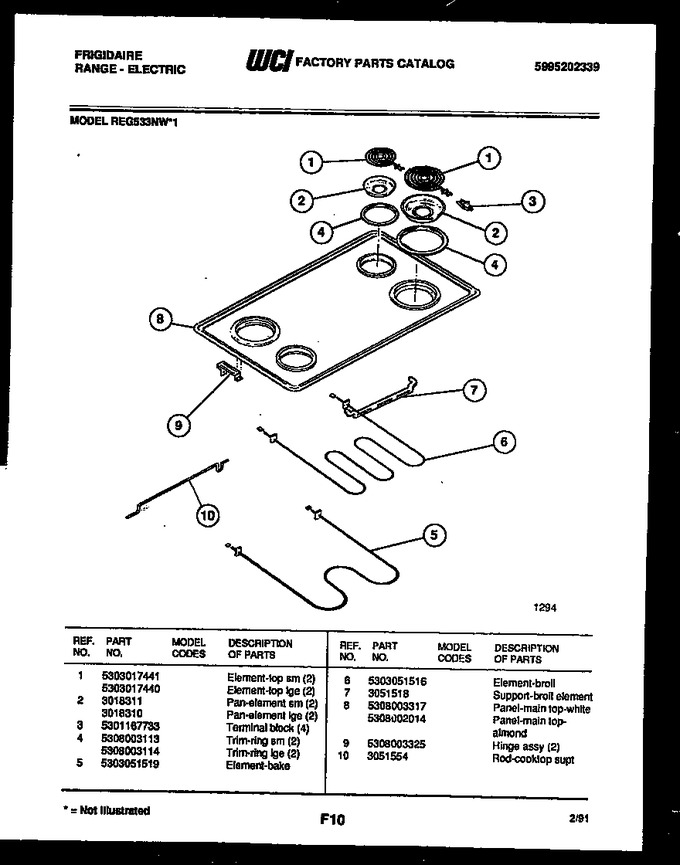

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017441 | Element-top Sm (2) |
|
- | |||||
| 2 | 3018311 | Pan-element Sm (2) |
|
- | |||||
| 2 | 3018310 | Pan-element Lge (2) |
|
- | |||||
| 3 | 5303935058 | Terminal Block (4) (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 4 | 5308003113 | Trim-ring Sm (2) |
|
- | |||||
| 5 | 5303051519 | Element-bake |
|
Immediately | $ 44.70 | ||||
| 6 | 5303051516 | Element-broil |
|
$ 189.23 | |||||
| 7 | 3051518 | Support Broil Element |
|
- | |||||
| 8 | 5308002014 | Panel, Main Top, Almond |
|
- | |||||
| 9 | 5308003325 | Hinge Assy (2) |
|
- | |||||
| 10 | 3051554 | Rod-cooktop Supt. |
|
- | |||||
| 1A | 5303017440 | Element-top Lge (2) |
|
- | |||||
| 4A | 5308003114 | Trim-ring Lge (2) |
|
- |
