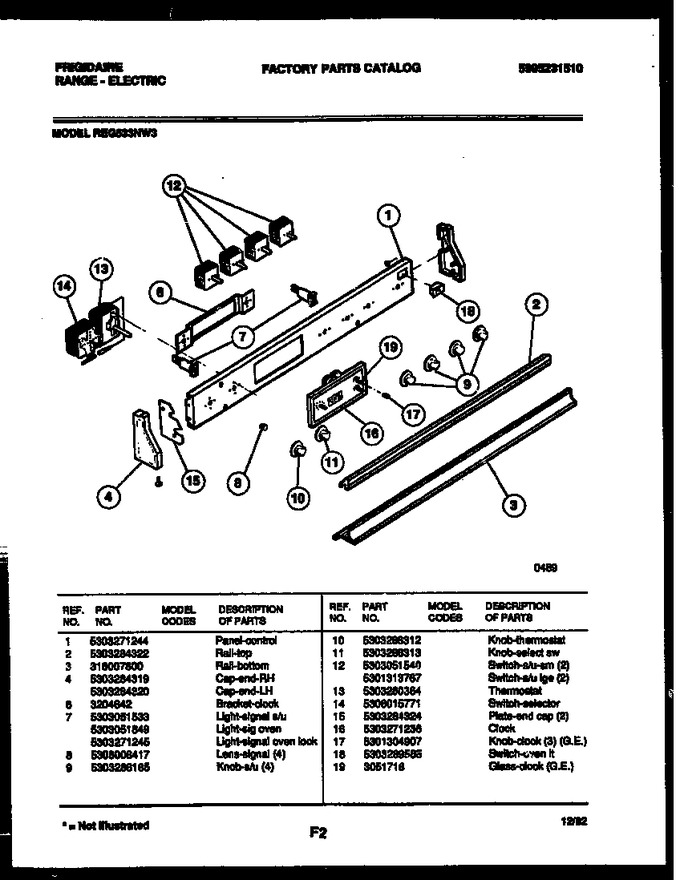

SELECT A DIAGRAM

02 - Control Panel


03 - Cooktop And Broiler Parts


04 - Door Parts


05 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303271244		Panel-control		Appelez-nous	-
2	5303284322		Rail-top		Appelez-nous	-
3	316007800		Rail-bottom		Appelez-nous	-
4	5303284319		Cap-end Rh		Appelez-nous	-
4	5303284320		Cap-end Lh		Appelez-nous	-
6	3204642		Bracket-clock		Appelez-nous	-
7	5303271245		Light-signal Oven Lock		Appelez-nous	-
7	5303051849		Light-sig Oven		Appelez-nous	-
7	5303051533		Light-signal S/u				$ 53.81
8	5308006417		Lens-signal (4)				$ 19.06
9	5303286185		Knob-s/u (4)		Appelez-nous	-
10	5303286312		Knob-thermostat		Appelez-nous	-
11	5303286313		Knob-select Sw		Appelez-nous	-
12	5303051540		Switch, S/u Sm (2)		Appelez-nous	-
12	5301313767		Switch-s/u Lge (2)		Appelez-nous	-
13	5303280364		Thermostat		Appelez-nous	-
14	5308015771		Switch-selector		Appelez-nous	-
15	5303284324		Plate-end Cap (2)		Appelez-nous	-
16	5303271236		Clock		Appelez-nous	-
17	5301304907		Knob-clock (3) (g.e.)		Appelez-nous	-
18	5303289585		Switch-oven Lt		Appelez-nous	-
19	3051718		Glass-clock (g.e.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
