02 - Control Panel
03 - Cooktop And Broiler Parts
04 - Door Parts
05 - Body Parts
New Model Search:

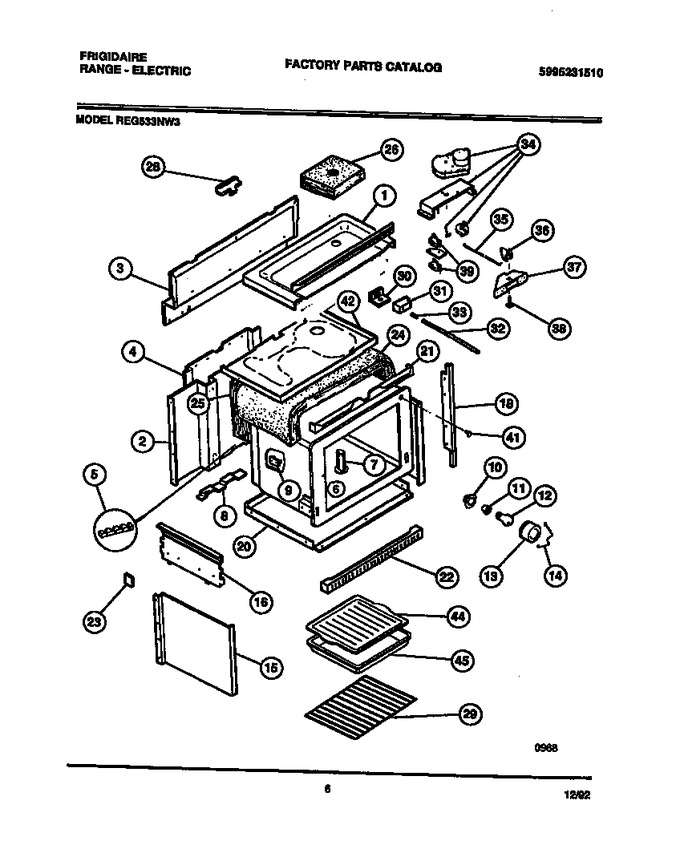

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303293414 | Panel-subtop |
|
- | |||||
| 2 | 5303286183 | Back-range |
|
- | |||||
| 3 | 5303286183 | Back-range Upper |
|
- | |||||
| 4 | 5303051856 | Wiring Cover |
|
- | |||||
| 5 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 6 | 5303304726 | Liner-oven |
|
- | |||||
| 7 | 3051773 | Tube-vent Assy |
|
- | |||||
| 8 | 3203574 | Plate-mtg |
|
- | |||||
| 9 | 3051552 | Bracket-therm Bulb |
|
- | |||||
| 10 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 11 | 316116400 | Receptacle-light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 12 | 3201908 | Light Bulb |
|
- | |||||
| 13 | 5304524341 | Lens-oven Light (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 14 | 5303205904 | Retainer-lens |
|
$ 7.67 | |||||
| 15 | 08012226 | Retainer, Insul (2) |
|
- | |||||
| 16 | 5308015935 | Panel, Side (2) |
|
- | |||||
| 18 | 08003334 | Trim-oven Frnt (2) |
|
- | |||||
| 20 | 3204634 | Retainer, Insul Btm |
|
- | |||||
| 21 | 5303293413 | Bracket-cooktop |
|
- | |||||
| 22 | 5308012249 | Grill, Bottom |
|
- | |||||
| 23 | 3051827 | Plate, Filler (2) |
|
- | |||||
| 24 | 3203029 | Insulation-wrap |
|
- | |||||
| 25 | 5303051630 | Insulation-back |
|
- | |||||
| 26 | 3051523 | Insulation, Vent Tube |
|
- | |||||
| 28 | 3051800 | Brkt, Hng Support |
|
- | |||||
| 29 | 08014219 | Rack, Offset Oven |
|
- | |||||
| 29 | 5303281625 | Rack Oven |
|
- | |||||
| 30 | 3051643 | Brkt-door Sw. |
|
- | |||||
| 31 | W10169313 | Switch-dr Latch (Replaces: 5308003081) |
|
Immediately | $ 29.18 | ||||
| 32 | 3051645 | Push Rod-sw. |
|
- | |||||
| 33 | 08007444 | End-push Rod |
|
- | |||||
| 34 | 5308015743 | Latch-motor Assy |
|
$ 211.92 | |||||
| 35 | 3051649 | Tie Bar |
|
- | |||||
| 36 | 3051648 | Latch-door |
|
- | |||||
| 37 | 3051647 | Hsg-door Latch |
|
- | |||||
| 38 | 5308012004 | Axle |
|
$ 8.29 | |||||
| 39 | 5303051740 | Switch-top |
|
- | |||||
| 39 | 5308006582 | Switch-bottom |
|
- | |||||
| 41 | 3204817 | Plug, Button |
|
- | |||||
| 42 | 5303284443 | Retainer-insul-top |
|
- | |||||
| 44 | 5303293415 | Grill-broiler |
|
- | |||||
| 45 | 5303293416 | Pan-broiler |
|
- | |||||
| *71449 | 19100210114 | Wiring Diagram-(not For Purchase) |
|
- | |||||
| *71449 | 3204825 | Plug Button (2) |
|
- | |||||
| *71449 | 3051810 | Retainer-door (2) |
|
- | |||||
| *71449 | 3203624 | Plate-warning |
|
- |
