02 - Control Panel


03 - Splasher Control


04 - Cooktop Parts


05 - Upper Oven Door Parts


06 - Lower Oven Door Parts


07 - Broiler Parts


08 - Upper Body Parts


09 - Lower Body Parts


10 - Drawer Parts

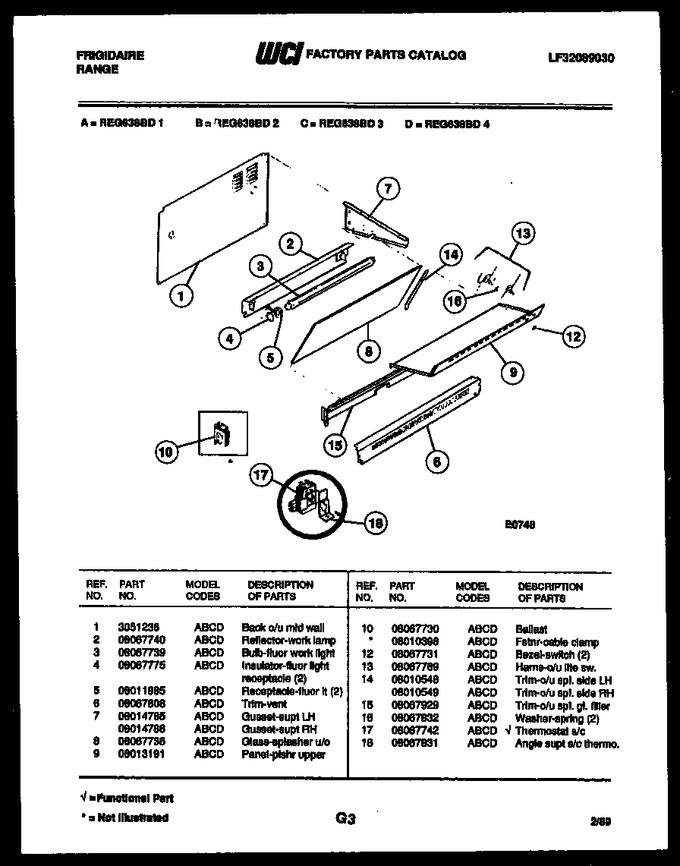

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051236		Back-o/u Mid Wall		Appelez-nous	-
2	08067740		Reflector-work Lamp		Appelez-nous	-
3	08067739		Bulb-fluor Work Light		Appelez-nous	-
4	08067775		Insulator-fluor Light Receptacle (2)		Appelez-nous	-
5	08011885		Receptacle-fluor Lt (2)		Appelez-nous	-
6	08067808		Trim-vent		Appelez-nous	-
7	08014785		Gusset-supt Lh		Appelez-nous	-
8	08067736		Glass, Splasher U/o		Appelez-nous	-
9	08013191		Panel-plshr Upper		Appelez-nous	-
10	08067730		Ballast		Appelez-nous	-
12	08067731		Bezel, Switch (2)		Appelez-nous	-
13	08067769		Harns-o/u Lite Sw.		Appelez-nous	-
14	08010548		Trim-o/u Spl. Side Lh		Appelez-nous	-
15	08067929		Trim-o/u Spl. G. Filler		Appelez-nous	-
16	08067832		Washer, Spring (2)		Appelez-nous	-
17	08067742		Thermostat-s/c		Appelez-nous	-
18	08067831		Angle Supt S/c Thermo.		Appelez-nous	-
10A	08010398		Fstnr-cable Clamp (non-illustrated)		Appelez-nous	-
14A	08010549		Trim-o/u Spl. Side Rh		Appelez-nous	-
7A	08014786		Gusset-supt Rh		Appelez-nous	-
