Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 08067996 Bracket-glass (2) Appelez-nous -
2 5303051148 Glass-heat Barrier Ctng Appelez-nous -
3 5303206271 Glass Package Appelez-nous -
4 5303131132 Glass-front Visulite Appelez-nous -
5 5303131256 Handle Appelez-nous -
6 3931014 Liner Appelez-nous -
7 5303131601 Seal, Door Special Order $ 374.63

8 3202151 Shield, Wool Appelez-nous -
9 3131323 Support, Glass (2) Appelez-nous -
10 3203480 Trim, Oven Door Appelez-nous -
11 3131720 Clip, Retainer (2) Appelez-nous -
12 3131974 Fastener, Spacer (6) Appelez-nous -
13 3016851 Screw-handle Appelez-nous -
14 3131573 Screw 8-18 X 1/2 Blk Appelez-nous -
15 08067799 Extrusion Channel Appelez-nous -
16 3200528 Insulation-wool Appelez-nous -
17 3934033 Seal, Foam Appelez-nous -
*10472 5303051818 Screw 8-18 X 1/2 Low Profile Appelez-nous -
*10472 3131236 Screw 8-18 X 1/2 Ph Appelez-nous -

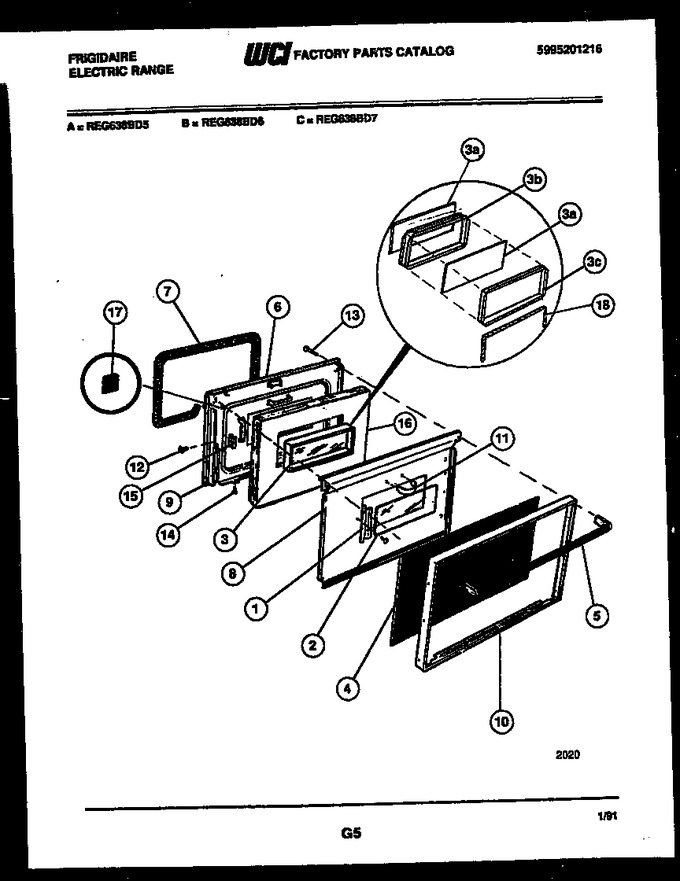

    View Diagram in Separate Window     Print Icon   Print Part List
