Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4161659 Cover, Wiring Harness Appelez-nous -
2 4159513 Washer Appelez-nous -
3 3369139 Screw, 10-16 X 3/8 Appelez-nous -
4 9740841 Latch Mechanism Assembly Appelez-nous -
5 4162145 Insulation, Switch Appelez-nous -
6 4171275 Inner Door Assembly Appelez-nous -
7 4163577 Insulation, Inner Door Appelez-nous -
8 9740922 Screw & Washer Assembly Appelez-nous -
9 4161592 Bracket, L.h. Door Stop Appelez-nous -
10 9740847 Plug Button Appelez-nous -
11 4160355 Bearing, Door Stop Insert (2) Special Order $ 7.71

12 4162949 Vapor Barrier, Inner Door (includes Item No. 41) Appelez-nous -
13 4161957 Bracket, Spring Mounting (l.h.) Appelez-nous -
13 4161958 Bracket, Spring Mounting (r.h.) Appelez-nous -
15 WP3390631 Screw, 10-32 X 3/8   (Replaces: 4159184) Special Order $ 7.04

16 4161594 Bracket, R.h. Door Stop Appelez-nous -
19 4161587 Bracket, R.h. Hinge Special Order $ 77.90

20 WP4171383 Spring, Door Co-balance   (Replaces: 9740413) Special Order $ 29.60

21 4161563 Pin, Hinge Appelez-nous -
22 4161585 Clip, Hinge Pin Retaining Appelez-nous -
23 9740851 Screw Appelez-nous -
24 4171447 Seal, Detergent Dispenser Special Order $ 8.48

25 9741365 Screw, 8-18 X 1/2 Appelez-nous -
26 WP9741678 Bimetal Assembly   (Replaces: 9741678) Special Order $ 82.98

27 4161295 Baffle, Lower Special Order $ 38.85

28 W11233072 Screw, 8-18 X 1/2   (Replaces: 9741050) In-Stock Immediately $ 12.62

30 9740171 Detergent Dispenser & Gasket Assembly (115 V., 60 Hz.) (includes Item 24) Special Order $ 120.52

32 4159594 Washer (rubber) Appelez-nous -
33 4162151 Screw, 10-32 X 1/2 Appelez-nous -
34 4171221 Fill Hole Plug Assembly (includes Item 35) Special Order $ 23.04

35 4162496 Washer, Fill Hole Plug Special Order $ 36.50

36 4171300 Nut, Rinse Agent Dispenser Special Order $ 34.65

37 4161545 Gasket, Rinse Agent Dispenser Appelez-nous -
38 9741234 Rinse Agent Dispensing Valve Appelez-nous -
39 4161589 Bracket, L.h. Hinge Appelez-nous -
41 4162950 Vapor Barrier, Corner (2) Appelez-nous -
42 4171912 Actuator, Door Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

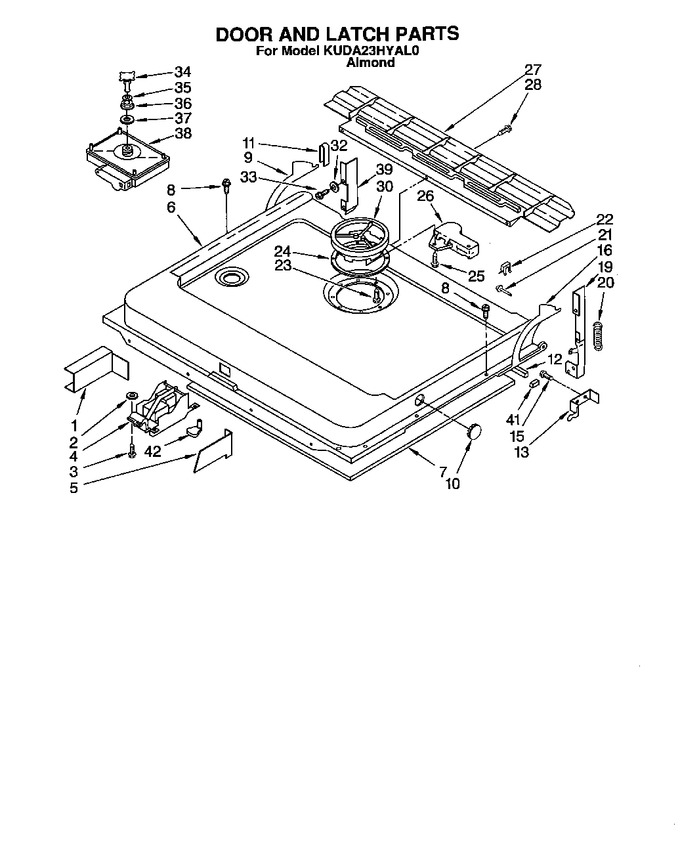

Diagram for KUDA23HYAL0
