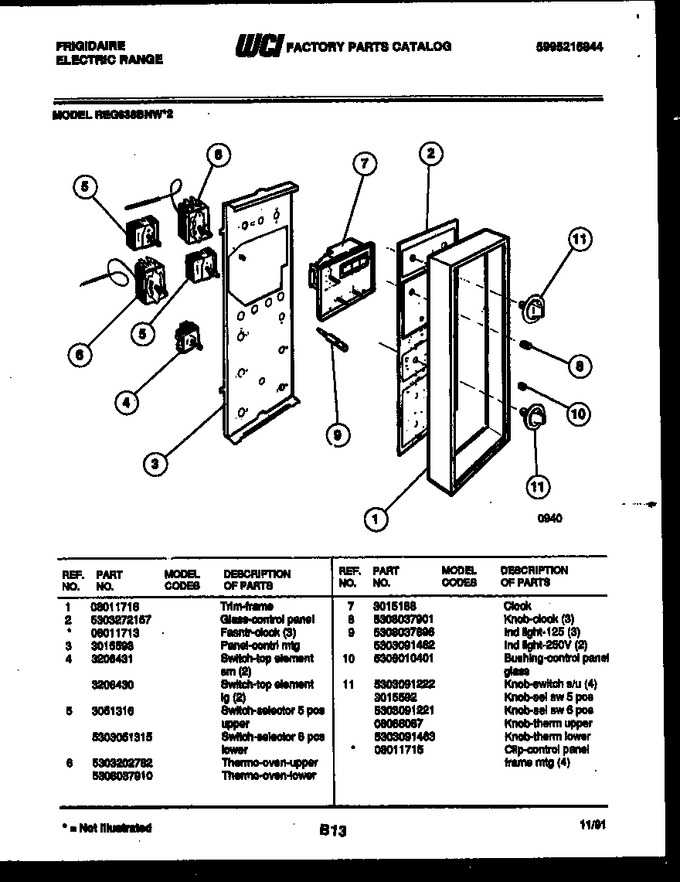

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08011716		Trim-frame		Appelez-nous	-
2	5303272157		Glass-control Panel		Appelez-nous	-
3	3015593		Panel-contrl Mtg		Appelez-nous	-
4	3206431		Switch-top Element Sm (2)		Appelez-nous	-
5	3051316		Switch-selector, 5 Pos, Upper		Appelez-nous	-
6	5303202782		Thermo-oven-upper		Appelez-nous	-
7	3015188		Clock		Appelez-nous	-
8	5308037901		Knob-clock (3)		Appelez-nous	-
9	5308037896		Indicator Light				$ 39.75
10	5308010401		Bushing-control Panel Glass		Appelez-nous	-
11	5303091222		Knob-switch S/u (4)		Appelez-nous	-
*56232	08011715		Clip-control Panel Frame Mtg (4)		Appelez-nous	-
11A	3015592		Knob-sel Sw 5 Pos		Appelez-nous	-
11B	5303091221		Knob-sel Sw 6 Pos		Appelez-nous	-
11C	08068087		Knob-therm Upper		Appelez-nous	-
11D	5303091463		Knob-therm Lower		Appelez-nous	-
2A	08011713		Fasntr-clock (3) (non-illustrated)		Appelez-nous	-
4A	3206430		Switch-top Element Lg (2)		Appelez-nous	-
5A	5303051315		Switch-selector 6 Pos Lower		Appelez-nous	-
6A	5308037910		Thermo-oven-lower		Appelez-nous	-
9A	5303091462		Ind Light-250v (2)		Appelez-nous	-
