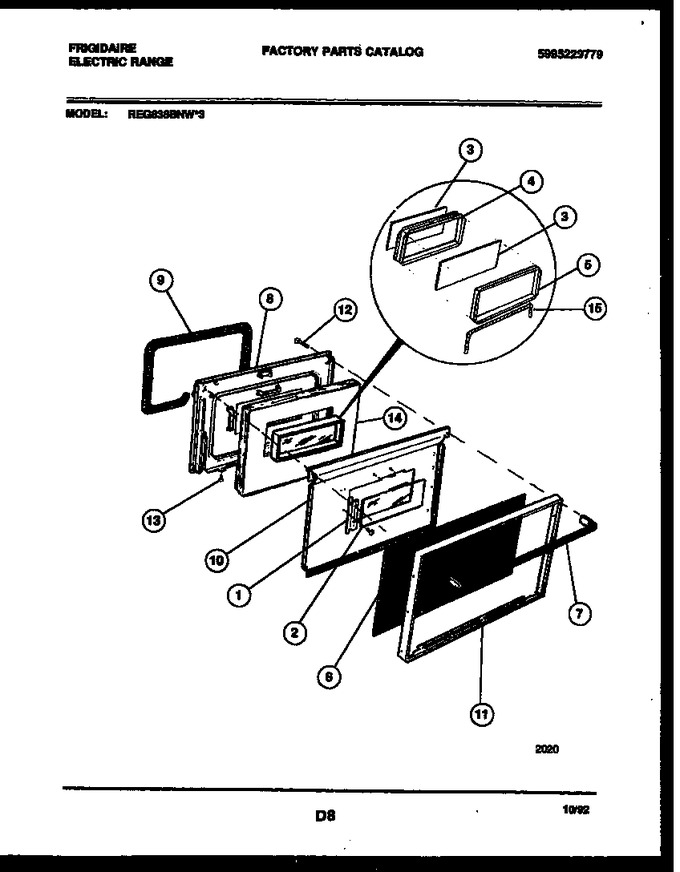

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209510 | Bracket-glass (2) |
|
- | |||||
| 2 | 5303209513 | Glass-heat Barrier Ctng |
|
- | |||||
| 3 | 5303209512 | Glass Heat Barrier (2) |
|
$ 150.41 | |||||
| 4 | 5303209517 | Spacer-glass |
|
- | |||||
| 5 | 5303209511 | Collar-glass |
|
- | |||||
| 6 | 5303210941 | Glass-front Visulite |
|
- | |||||
| 7 | 5303285070 | Handle |
|
- | |||||
| 8 | 5303209515 | Liner |
|
- | |||||
| 9 | 5303131601 | Seal, Door |
|
$ 374.63 | |||||
| 10 | 5303211084 | Shield-wool |
|
- | |||||
| 11 | 5303209518 | Trim-oven Door |
|
- | |||||
| 12 | 5303280308 | Screw-handle |
|
$ 16.96 | |||||
| 13 | 5303269859 | Screw 8-18 X 1/2 Blk |
|
- | |||||
| 14 | 5303209514 | Insulation-wool |
|
- | |||||
| 15 | 5303211085 | Seal-rope |
|
$ 44.00 | |||||
| *68004 | 5303208655 | Foil-alum Blk |
|
- | |||||
| *68004 | 5303212762 | Screw 8-18 X 1/2 Ph |
|
- | |||||
| *68004 | 5303208656 | Foil-alum Blk |
|
- |
