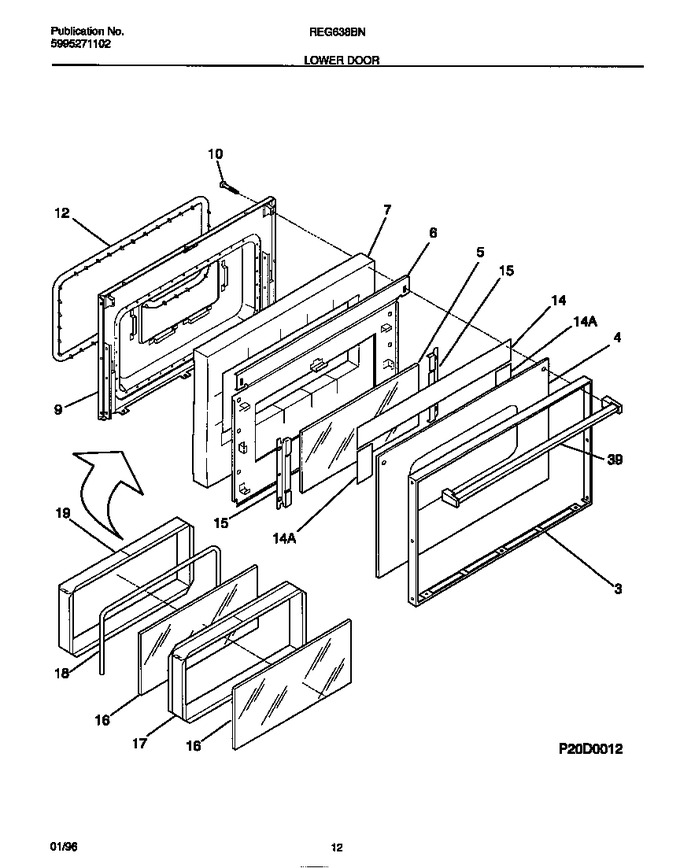

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303209518		Trim-oven Door (black)		Appelez-nous	-
4	5303210941		Glass-oven Door, Black, Outer		Appelez-nous	-
5	5303209513		Glass-oven Door, Inner		Appelez-nous	-
6	5303211084		Shield-insulation		Appelez-nous	-
7	5303209514		Insulation-oven Door		Appelez-nous	-
9	5303209515		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
12	5303131601		Seal-oven Door				$ 374.63
14	5303208655		Reflector, Aluminum Foil, (2)		Appelez-nous	-
14	5303208656		Reflector, Aluminum Foil		Appelez-nous	-
15	5303209510		Bracket-glass Mtg		Appelez-nous	-
16	5303209512		Glass-oven Door, Heat Barrier, (2)				$ 150.41
17	5303209517		Spacer-glass		Appelez-nous	-
18	5303211085		Seal-rope, 0.25 Dia				$ 44.00
19	5303209511		Collar-glass Mtg		Appelez-nous	-
39	5303285070		Handle-door, Oven		Appelez-nous	-
*11332	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*11333	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*11334	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
