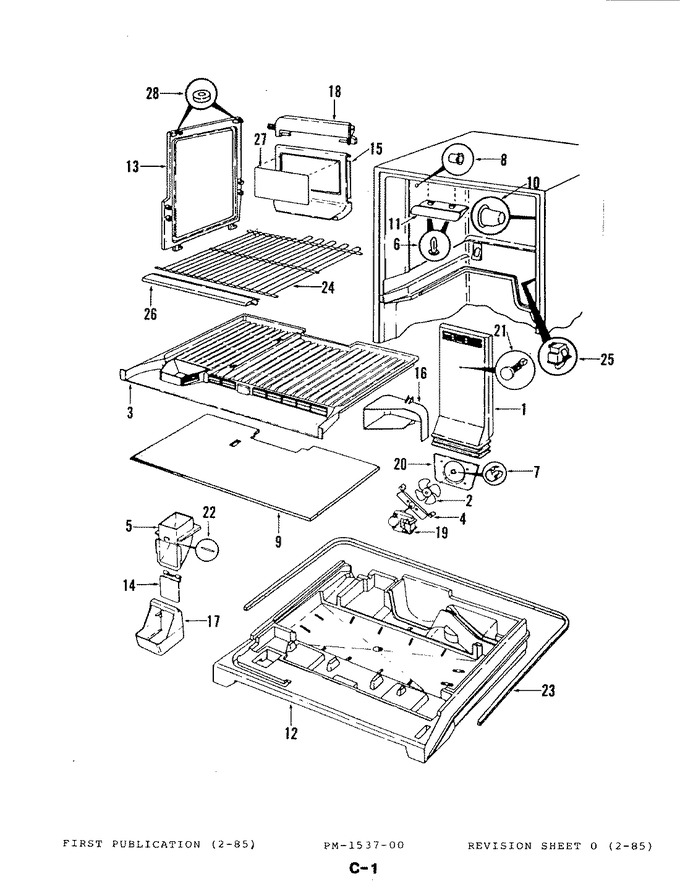

01 - Freezer Compartment
02 - Fresh Food & Freezer Door
03 - Fresh Food Compartment
04 - Ice Cream Maker
05 - Unit Compartment & System
06 - Water & Ice Dispenser
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60084-7 | Tunnel, Air |
|
- | |||||
| 2 | 64359-1 | Blade, Evaporator Fan |
|
- | |||||
| 3 | 60474-6 | Bottom, Frz. |
|
- | |||||
| 4 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 5 | 60504-1 | Ice Chute |
|
- | |||||
| 6 | 28013-2 | Rivet, Air Tunnel |
|
- | |||||
| 7 | 420092-900 | Washer, Spring |
|
- | |||||
| 8 | 60313-1 | Cup, Shelf |
|
- | |||||
| 9 | 60557-5 | Cover, Evaporator----na |
|
- | |||||
| 10 | 60151-1 | Shelf Mtg Cup |
|
- | |||||
| 11 | 60517-1 | Deflector |
|
- | |||||
| 12 | 60576-5 | Tray, Divider |
|
- | |||||
| 13 | 60500-1 | Divider |
|
- | |||||
| 14 | 60502-3 | Door, Ice Chute |
|
- | |||||
| 15 | 65066-2 | Door |
|
- | |||||
| 16 | 65150-1 | Air Tunnel Duct |
|
- | |||||
| 17 | 60503-1 | Front |
|
- | |||||
| 18 | 60501-1 | Front |
|
- | |||||
| 19 | WP61004888 | Motor, Evaporator Fan (Replaces: 54482-10) |
|
Immediately | $ 104.99 | ||||
| 20 | 60608-1 | Fan Shroud |
|
- | |||||
| 21 | 62927-1 | Clip |
|
- | |||||
| 22 | 406062-1 | Screw |
|
- | |||||
| 22 | 65275-3 | Screw |
|
- | |||||
| 22 | 400015-12 | Screw |
|
- | |||||
| 22 | 60505-1 | Hinge Pin |
|
- | |||||
| 23 | 65518-4 | Seal |
|
- | |||||
| 24 | 60514-1 | Shelf |
|
- | |||||
| 25 | 55732-2 | Switch |
|
- | |||||
| 26 | 60414-10 | Trim |
|
- | |||||
| 27 | 65281-15 | Insert |
|
- | |||||
| 28 | 29675-30 | Ground Wire |
|
- | |||||
| 28 | WP52185-1 | Washer (Replaces: 52185-1) |
|
Immediately | $ 9.47 | ||||
| 28 | 60565-1 | Wire Harness |
|
- |
