Diagram for 01 - Door And Panel
01 - Door And Panel

Diagram for 02 - Blower
02 - Blower

Diagram for 03 - Control Panel, Lit/optional
03 - Control Panel, Lit/optional

Diagram for 04 - Pump And Motor
04 - Pump And Motor

Diagram for 05 - Lower Washarm And Strainer
05 - Lower Washarm And Strainer

Diagram for 06 - Heater
06 - Heater

Diagram for 07 - Fill And Overfill
07 - Fill And Overfill

Diagram for 08 - Upper Wash And Rinse
08 - Upper Wash And Rinse

Diagram for 09 - Frame And Tank
09 - Frame And Tank

Diagram for 10 - Upper Rack And Track
10 - Upper Rack And Track

Diagram for 11 - Lower Rack
11 - Lower Rack

Diagram for 12 - Door And Latch
12 - Door And Latch


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4162215 Screw Appelez-nous -
2 9741100 Upper Mounting Panel Assembly (includes Lower Trim) Appelez-nous -
3 4171421 Filler (upper Panel) Appelez-nous -
4 4159439 Screw, 6 X 1/4 Appelez-nous -
5 4171395 Side Trim (upper Panel) Appelez-nous -
6 4171624 Side Trim (lower Panel) Special Order $ 53.82

7 4162735 Grommet (4) Appelez-nous -
8 4171623 Lower Mounting Panel Assembly (includes Upper & Lower Trim) Appelez-nous -
9 4162734 Filler (lower Panel) Appelez-nous -
10 4159494 Lock Washer Appelez-nous -
11 WP693304 Screw   (Replaces: 4159390) Special Order $ 7.04

12 4171625 Trim, Panel Special Order $ 53.78

13 9740868 Channel, Evaporation Special Order $ 45.54

14 4171198 Panel Insert Kits (stainless Steel) Special Order $ 139.24

14 4171595 Panel Insert Kits (white/black) Appelez-nous -
14 4171592 Panel Insert Kits (harvest Gold/almond) Appelez-nous -
14 4171200 Panel Insert Kits (almond/white) Appelez-nous -
14 4171201 Panel Insert Kits (harvest Gold/ Onyx Black) Appelez-nous -

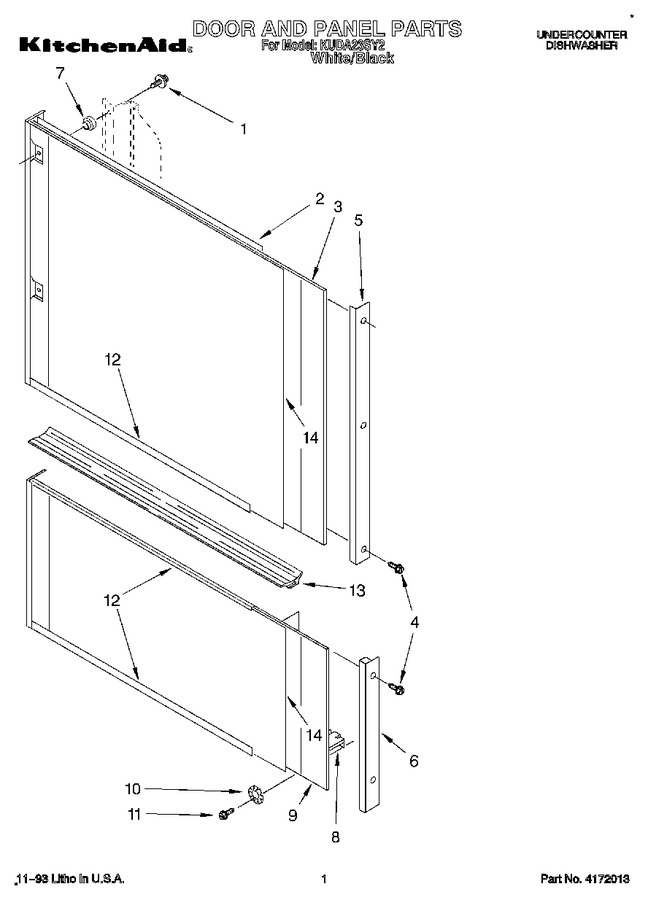

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for KUDA23SY2
