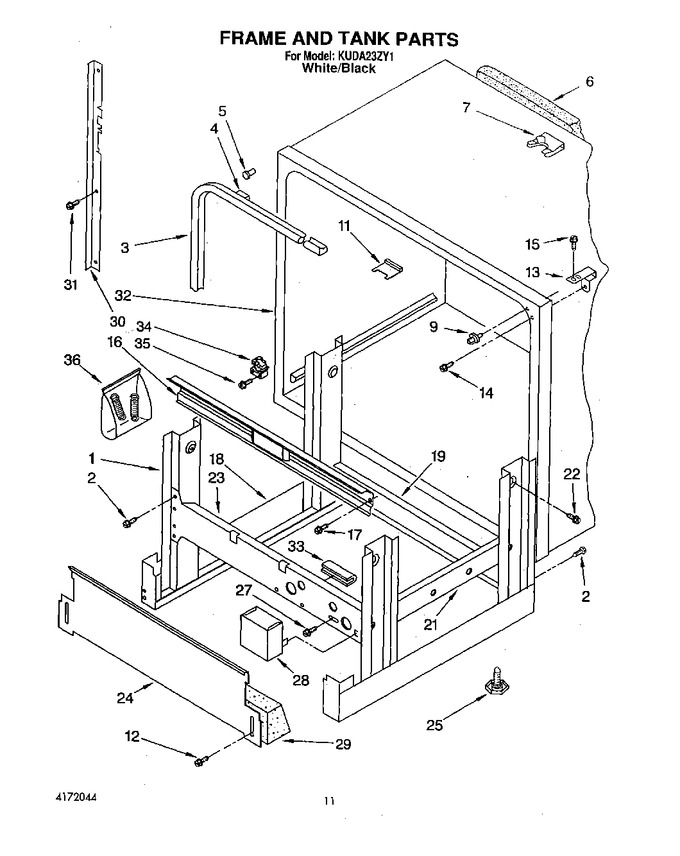

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4171627 | Short Frame Assembly (includes Items 2, 18, 19, 21 & 23) |
|
- | |||||
| 2 | 9740980 | Screw, 10-16 X 1/2 |
|
- | |||||
| 3 | 4161631 | Door Seal (includes Item 4) |
|
$ 91.96 | |||||
| 4 | 4161608 | Clip, Seal |
|
- | |||||
| 5 | 4161626 | Bumper, Door |
|
- | |||||
| 6 | 4171910 | Insulation, Tank Back (mastic) |
|
- | |||||
| 7 | 9740303 | Clip, Retainer |
|
- | |||||
| 9 | 9741676 | Actuator, Interlock Switch |
|
- | |||||
| 11 | 4160092 | Keeper, Latch |
|
- | |||||
| 12 | 9741435 | Screw |
|
- | |||||
| 13 | WP9741251 | Bracket, Top Panel Anchor (Replaces: 9741251) |
|
$ 7.61 | |||||
| 14 | 9741257 | Screw, 7-19 X 1/2 |
|
- | |||||
| 15 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.08 | ||||
| 16 | 9741276 | Support, Lower Panel |
|
$ 47.15 | |||||
| 17 | 4162151 | Screw, 10-32 X 1/2 |
|
- | |||||
| 18 | 4171620 | Frame Assembly (l.h.) |
|
- | |||||
| 19 | 4162867 | Cross Frame, Rear |
|
- | |||||
| 21 | 4171619 | Frame Assembly (r.h.) |
|
- | |||||
| 22 | 9741690 | Screw, 1/4-20 X 1/2 |
|
- | |||||
| 23 | 9741173 | Cross Frame, Front |
|
- | |||||
| 24 | 4171618 | Kick Board |
|
- | |||||
| 25 | 4162911 | Foot, Levelier |
|
- | |||||
| 27 | 4159372 | Screw, 10-32 X 3/8 |
|
- | |||||
| 28 | 4161369 | Enclosure, Elec. Supply |
|
- | |||||
| 28 | W11233072 | Screw, 8-18 X 1/2 (Replaces: 4159396) |
|
Immediately | $ 12.62 | ||||
| 29 | 4171176 | Shield, Insulation |
|
- | |||||
| 30 | 4171305 | Trim, Tank (l.h.) |
|
- | |||||
| 30 | 4171304 | Trim, Tank (r.h.) |
|
- | |||||
| 31 | 9741233 | Screw, 10-24 X 1/2 |
|
- | |||||
| 32 | 9741374 | Tank (serviced Complete With Frame) |
|
- | |||||
| 33 | 4171215 | Protector, Edge |
|
- | |||||
| 34 | 304658 | Relay, Start |
|
- | |||||
| 35 | 4159403 | Screw, 8-18 X 1-1/4 |
|
- | |||||
| 36 | 9741248 | Spring Assembly (heavy Duty) |
|
$ 21.02 |
